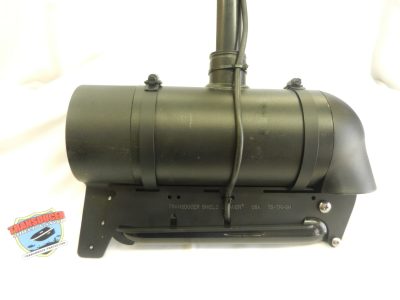

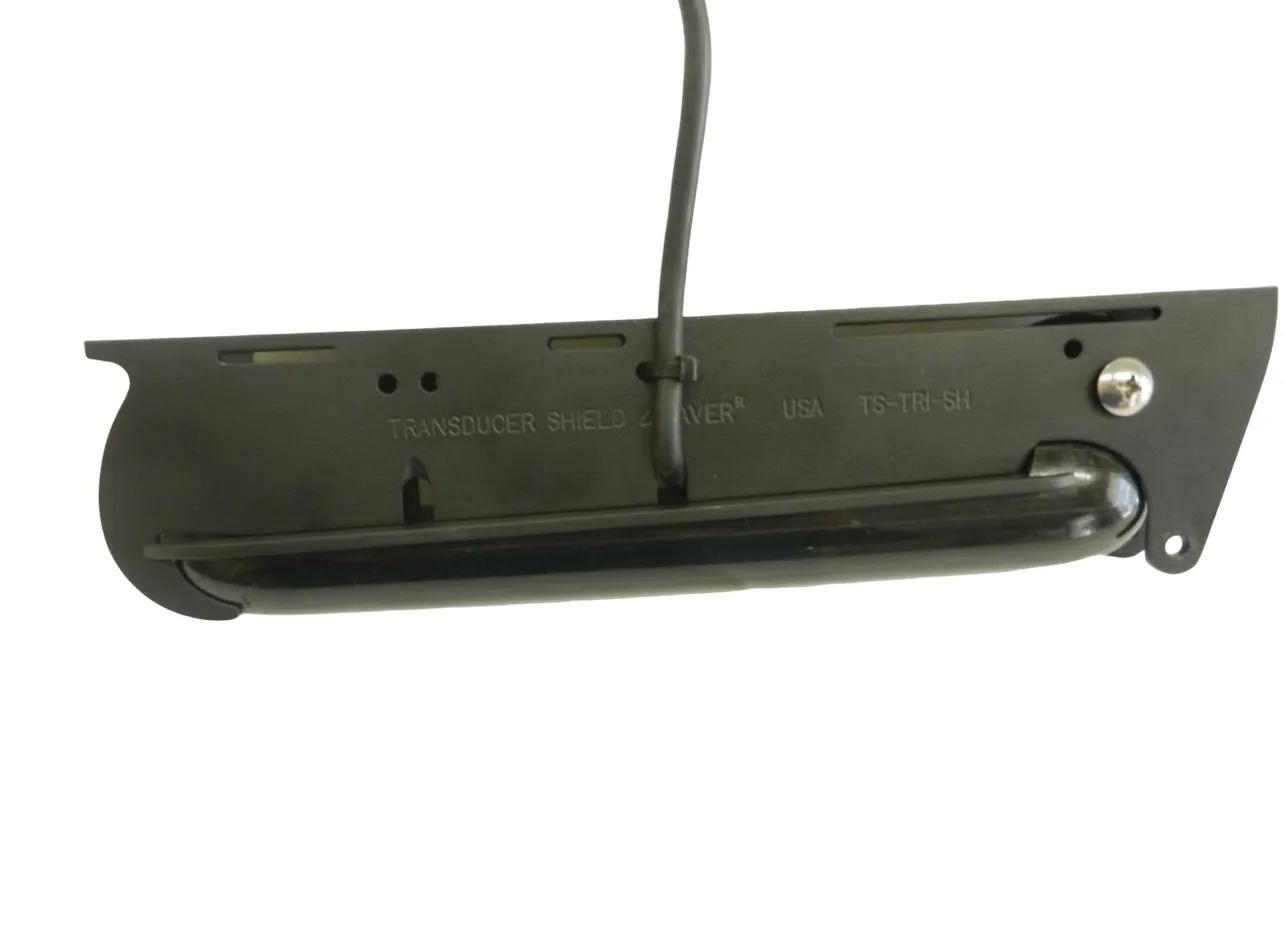

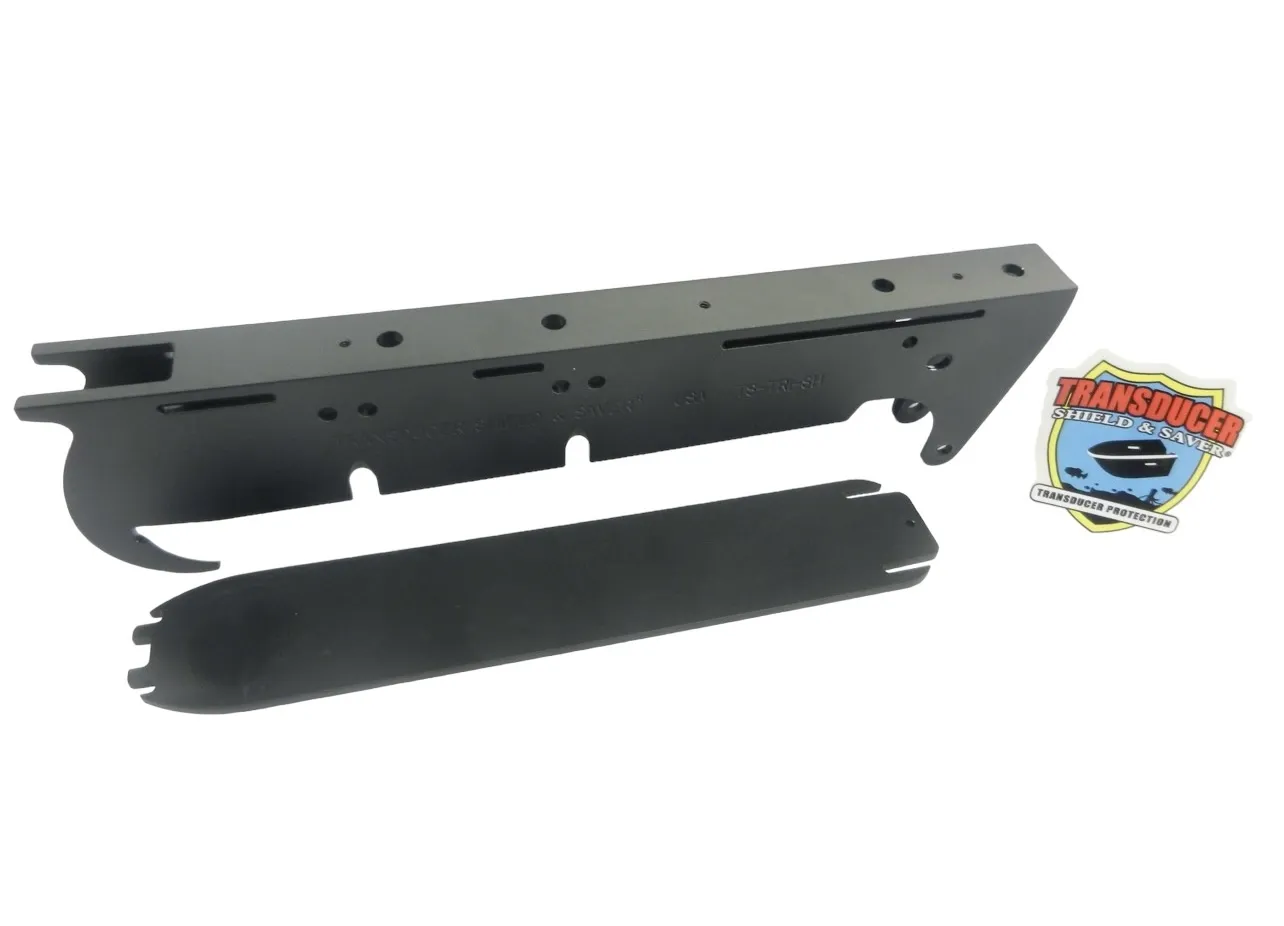

Item # TS-TRI-SH Combo is built in High Quality Aluminum Alloy and Black Powder Coated. It is designed to fit Lowrance® Hook 2 Triple Shot Transducer # 000-14029-001 (approx. 10” long x 1-3/8” wide x 1”thick and the cable comes out at the front). The Sleek Hydrodynamic Design will cut through the water for less drag, reduces collection of debris, keeps the transducer positioned correctly and will not interfere with the transducer signal.

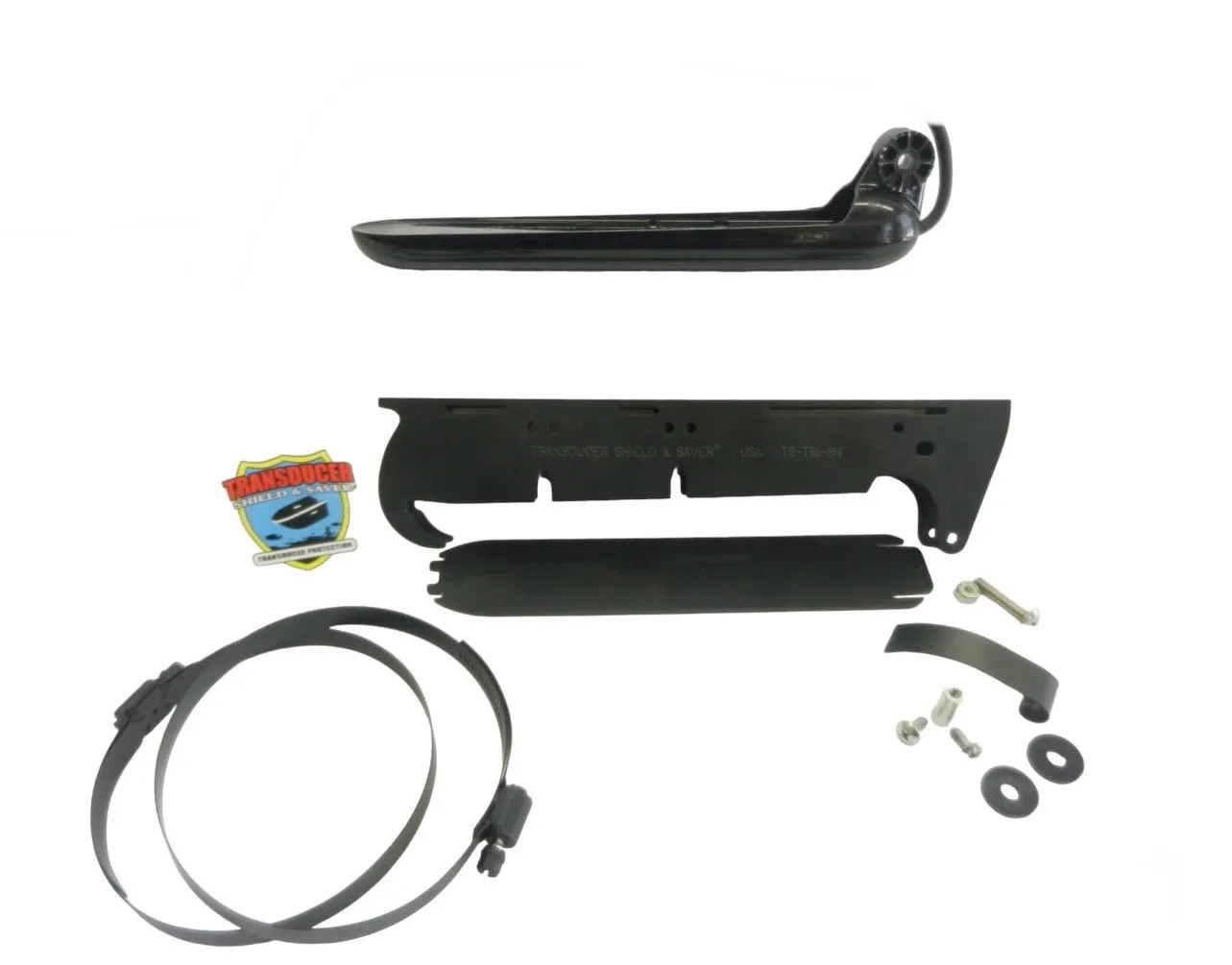

The Combo includes two Stainless Steel Black Powder coated straps and the appropriate finishing “Ram” and / or “Strip” required to fit Minnkota® 24v 80 lb and up OR Motorguide® 24v 74 lb and up.
Motorguide® 12v, 12/24v 70 lb or below will require “custom” parts to fit the Transducer Shield. Allow extra time when ordering a Transducer Shield to fit your trolling motor.
Minnkota® 12v or 24v 70 lb or below with the skeg at the front and the propeller at the back of the trolling motor (prop and skeg on opposite ends of the trolling motor) will require an custom item “Ram Rail Kit” to allow the Transducer Shield to fit your particular trolling motor. The cost of the Ram Rail Kit @ $150.00 is in addition to the Transducer Shield. Please allow extra time when ordering a Transducer Shield if you have this type of trolling motor.
When placing an order for this product, please make sure to answer all the questions in the questionnaire. From the information you provide we will be able to determine if additional parts are required. You will be contacted before the order is shipped.
If you plan to install the Triple Shot Transducer on the side of a Jack Plate, Hole Shot Plate under the Jack Plate or Set Back below the transom – Please go to Transducer Shield® Item # TS-TRI-SH
If you plan to install the Total Scan transducer on the back of the boat (transom) – Please go to Spring Back Bracket Item # SBB-4
All of the Products are Proudly Designed and Built in the USA
See More Fish …… Catch More Fish

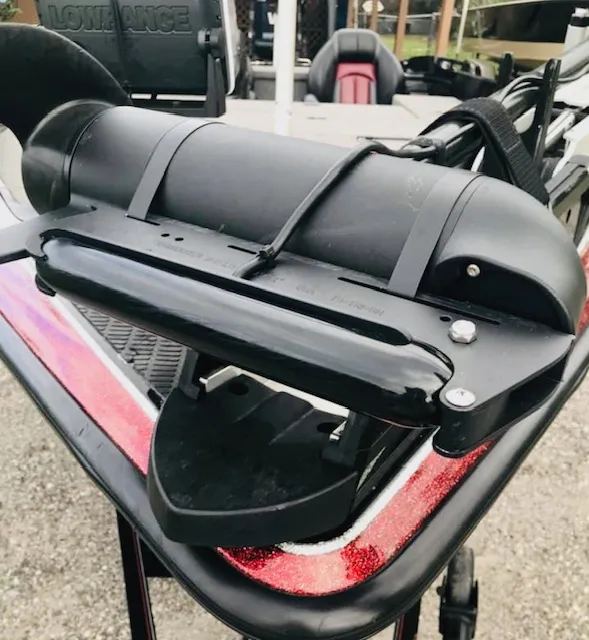

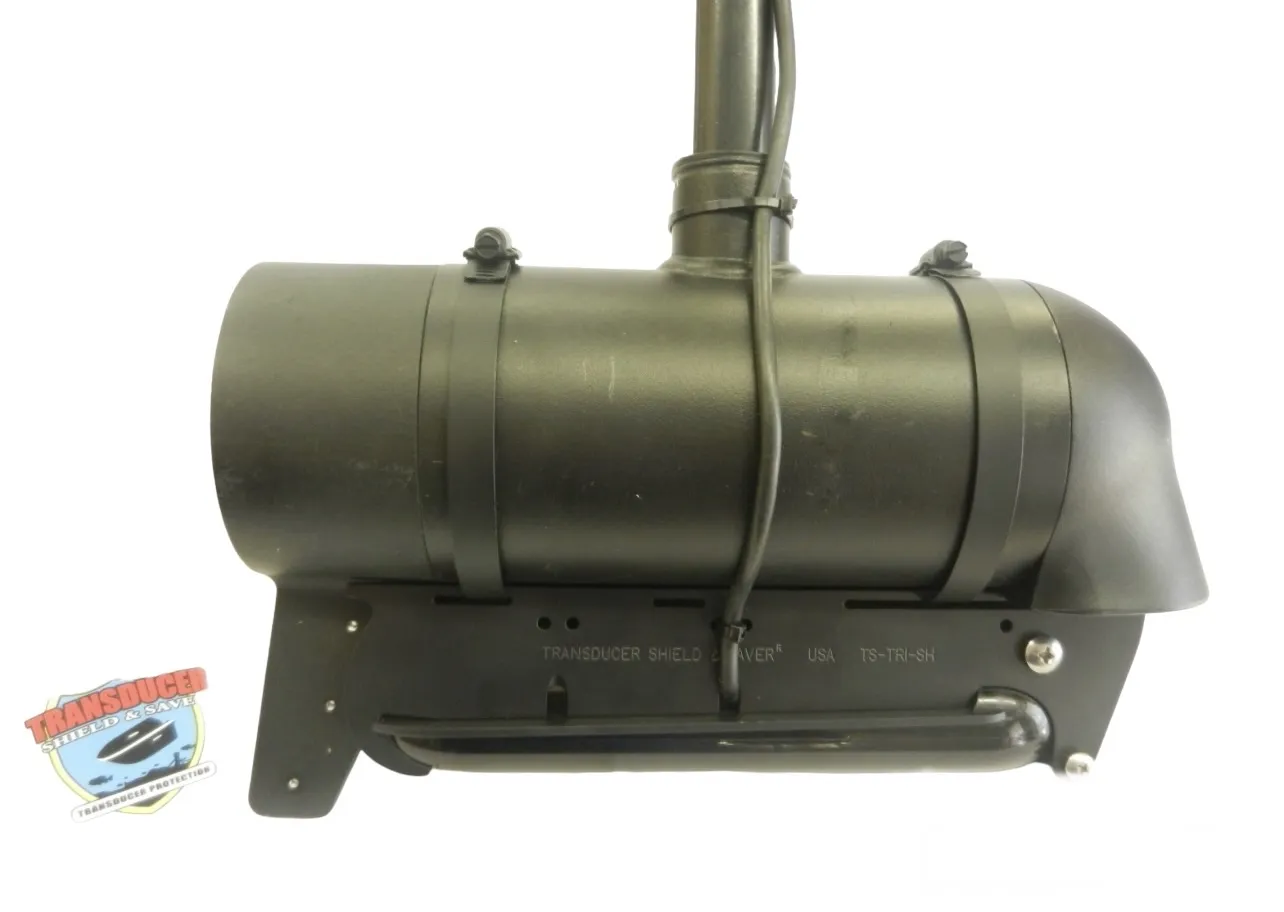

Choose this item to attach a Lowrance® “Hook 2″Triple Shot Transducer # 000-14029-001 on a Trolling Motor. It is VERY IMPORTANT that you complete the questionnaire below in full when ordering this item.
