Fits Lowrance LSS2 structure scan 10-1/4″ transducer for installation on SetBack/Step OR Hole Shot/Baffle plates.
NOTE: When the transducer is attached to a Set Back, Hole Shot Plate or the side of a Jack Plate, it will not track the bottom when up on plane because the transducer is out of the water. For bottom reading on plane, a transducer inside the hull will be required.
It is very important that you complete the questionnaire when ordering this item.

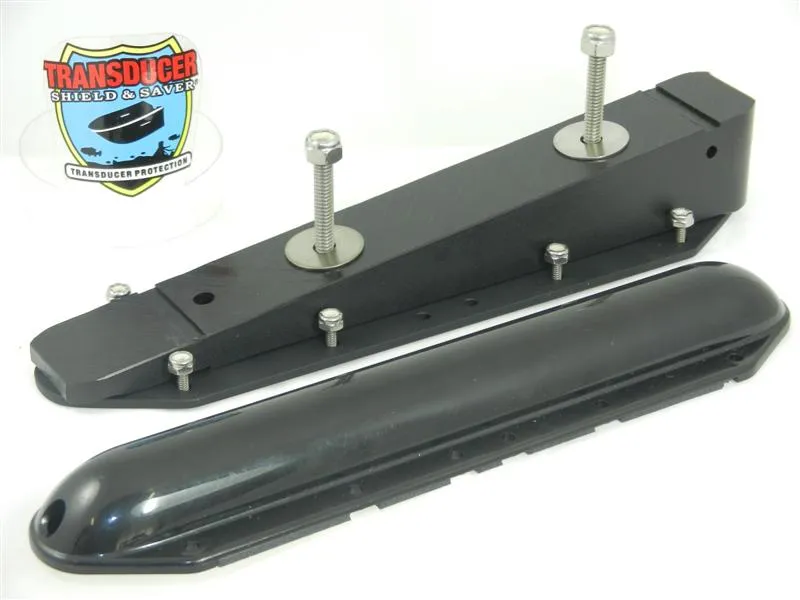

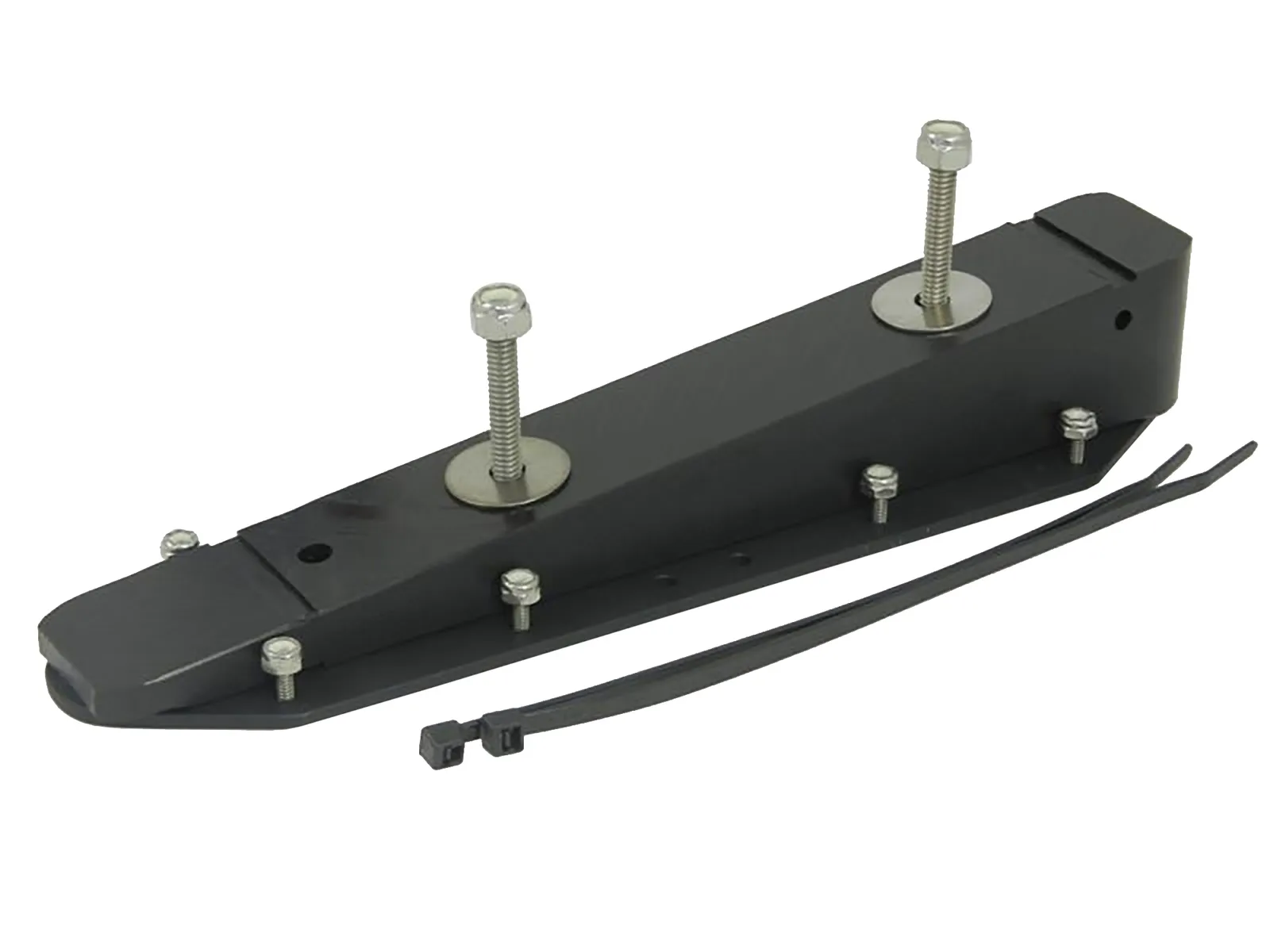

ITEM # TS-LSS2-2L is designed to put the transducer at the correct angle when the boat is in the water. This sleek and economical product includes a black marine polyethylene wedge and high quality 6061 black powder coated base plate to fit the 10-1/4″ Lowrance® LSS2 structure scan transducer. NOTE: When the transducer is attached to a Set Back, Hole Shot Plate or the side of a Jack Plate, it will not track the bottom when up on plane because the transducer is out of the water. For bottom reading on plane, a transducer inside the hull will be required.
Our TS-LSS2-2L can be installed on:
(1) on a set back / step under the hull. Good candidates for this application are (a) Ranger 400, 500, 600, Z Comanche and some 100 series (b) some Nitro boats (c) some Champion boats (d) some Blazer boats
(2) on Ranger boats which have a curved set back ADD Item # WG-LSS2-FILLER to your order. The Ranger boats that we are aware of with curved set backs are: VS models 118, 175, 185, 188 and 195
(3) on a 10″ or 12″ hole shot plate/baffle plate – this is a plate which covers the under part of the jack plate. It is NOT a good candidate for jack plates that are at a 90° angle with the transom. For such jack plates, please choose Item # TS-LSS2-L and an L Bracket for installation on the side of the jack plate.
DO NOT choose this assembly for Atlas / T-H Marine hole shot plates.
Please complete the questionnaire when placing your order. The more information that we have about your boat and/or jack plate, the better we can assist you.
If you need assistance, please call or email and we will assist you in ordering the correct item.
Proudly Designed and Built in the USA
See More Fish ……… Catch More Fish
