Choose this item to attach a Lowrance® Total Scan transducer # 000-12568-001 on a Trolling Motor. This Transducer Shield will fit the New Lowrance HDS Live Active Imaging transducer. It is VERY IMPORTANT that you complete the questionnaire below in full when ordering this item. THIS ITEM is NOT recommended for a Lowrance® Structure Scan 3D on a Trolling Motor because a 2D transducer would be required and will not fit into the Transducer Shield.

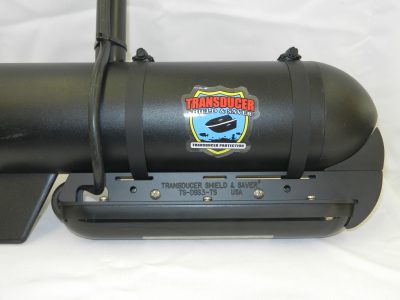

Item # TS-DSS3-TS Combo is built in High Quality Aluminum Alloy and Black Powder Coated. It is designed to fit Lowrance® Total Scan transducer # 000-12568-001 and the Live Active Imaging 2-IN-1 transducer # 000-14490-001 or 3-IN-1 transducer # 000-14489-001.The transducer is approx. 10” long x 2-1/4” wide x 1-1/4″ thick and the cable comes out from the back.
Note: This item is NOT recommended for the Lowrance® Structure Scan 3D transducer on a trolling motor. Reason: the 3D transducer would also need a 2D transducer. We do not offer a Transducer Shield to accommodate two transducers.
The Sleek Hydrodynamic Design will cut through the water for less drag, reduces collection of debris, keeps the transducer positioned correctly and will not interfere with the transducer signal.
The Combo includes two Stainless Steel Black Powder coated straps and the appropriate finishing “Ram” and / or “Strip” required to fit Minnkota® and Motorguide® trolling motors 24v 74 lb and up.
It is very important that you complete the questionnaire when ordering this item. The information you provide will help us to assist you better and avoid a delay in shipping your order.
Warming: Minnkota and Motoguide Trolling Motors 70 lb thrust down to 43 lb thrust will require additional components due to the size of the transducer and length of the trolling motor housing. Custom parts and pricing will depend on your particular trolling motor. When placing an order for this product, please make sure to answer all the questions in the questionnaire. From the information you provide we will be able to determine if additional parts are required. You will be contacted before the order is shipped.
If you plan to install the Total Scan transducer on the side of a Jack Plate, Hole Shot Plate under the Jack Plate or Set Back below the transom – Please go to Transducer Shield® Item # TS-DSS3-TS
If you plan to install the Total Scan transducer on the back of the boat (transom) – Please go to Spring Back Bracket Item # SBB-4 and Armor Plate Item # AP-TS-SS2-3D
All of the Products are Proudly Designed and Built in the USA
See More Fish …… Catch More Fish
