TM-XTM-75/150 T to fit Humminbird XTM 9 HW MDI 75 T or XTM 9 HW MSI 150 T transducer

$99.95

TM-XTM-75/150 T fits Humminbird® Helix Mega Di transducer XTM 9 HW MDI 75 T or Helix Mega Si transducer XM 9 HW MSI 150 T. for trolling motor, set back, hole shot plate or jack plate installation.
If this item is going on a Trolling Motor, please answer the trolling motor questions.  If this item is going on the Jack Plate please answer all the questions about your jack plate and boat.  It is very important that you answer the questionnaire in full please.
NOTE:  When the transducer is attached to a Set Back, Hole Shot Plate or the side of a Jack Plate, it will not track the bottom when up on plane because the transducer is out of the water.  For bottom reading on plane, a transducer inside the hull will be required.

  • Strap Size Guide:

    Motorguide = 3.5"


    Minnkota up to 70 lb thrust = 3.5"

    Minnkota 74 to 101 lb thrust = 4.0"

    Minnkota 112 lb 4.5"

Categories: ,

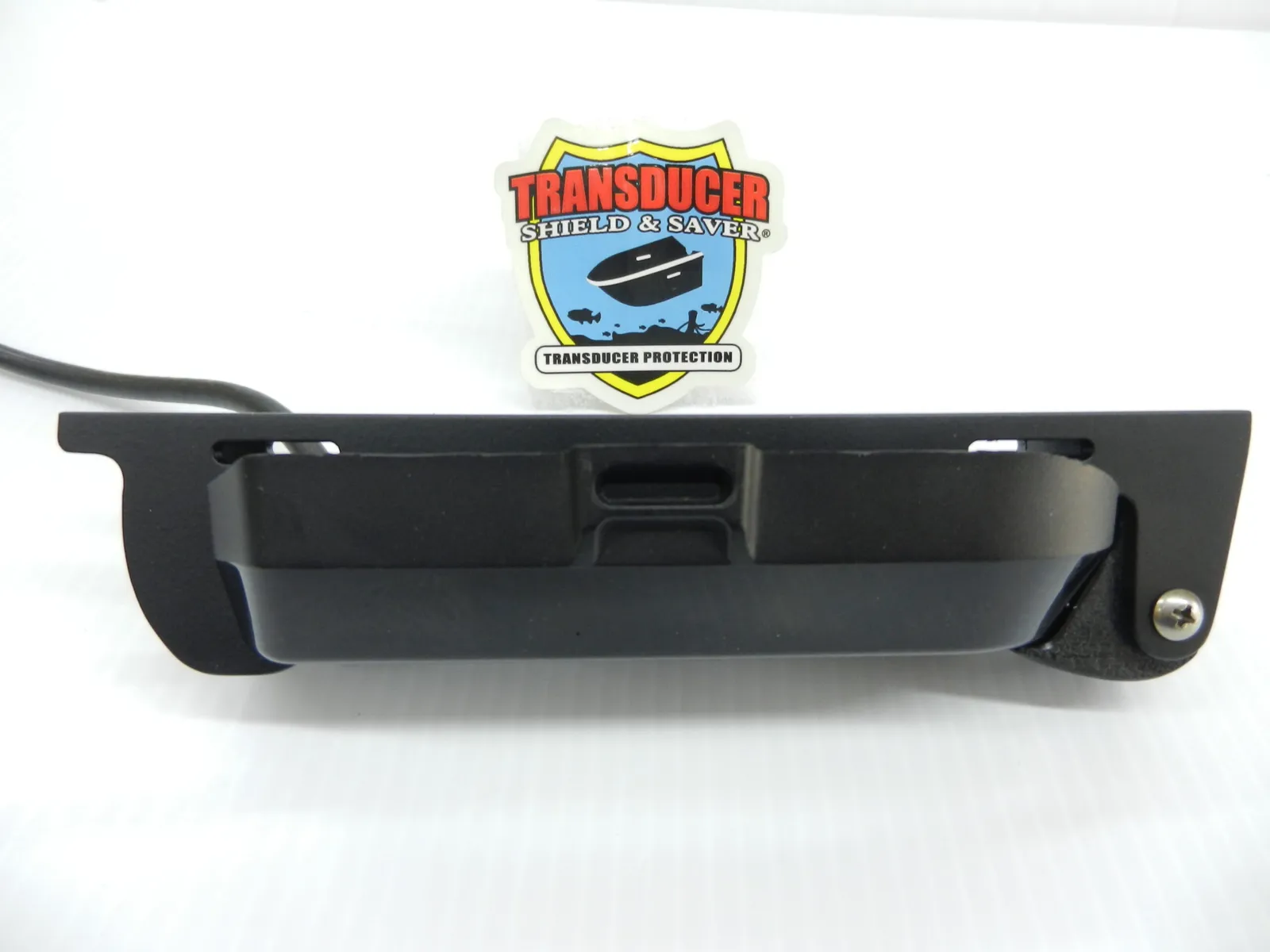

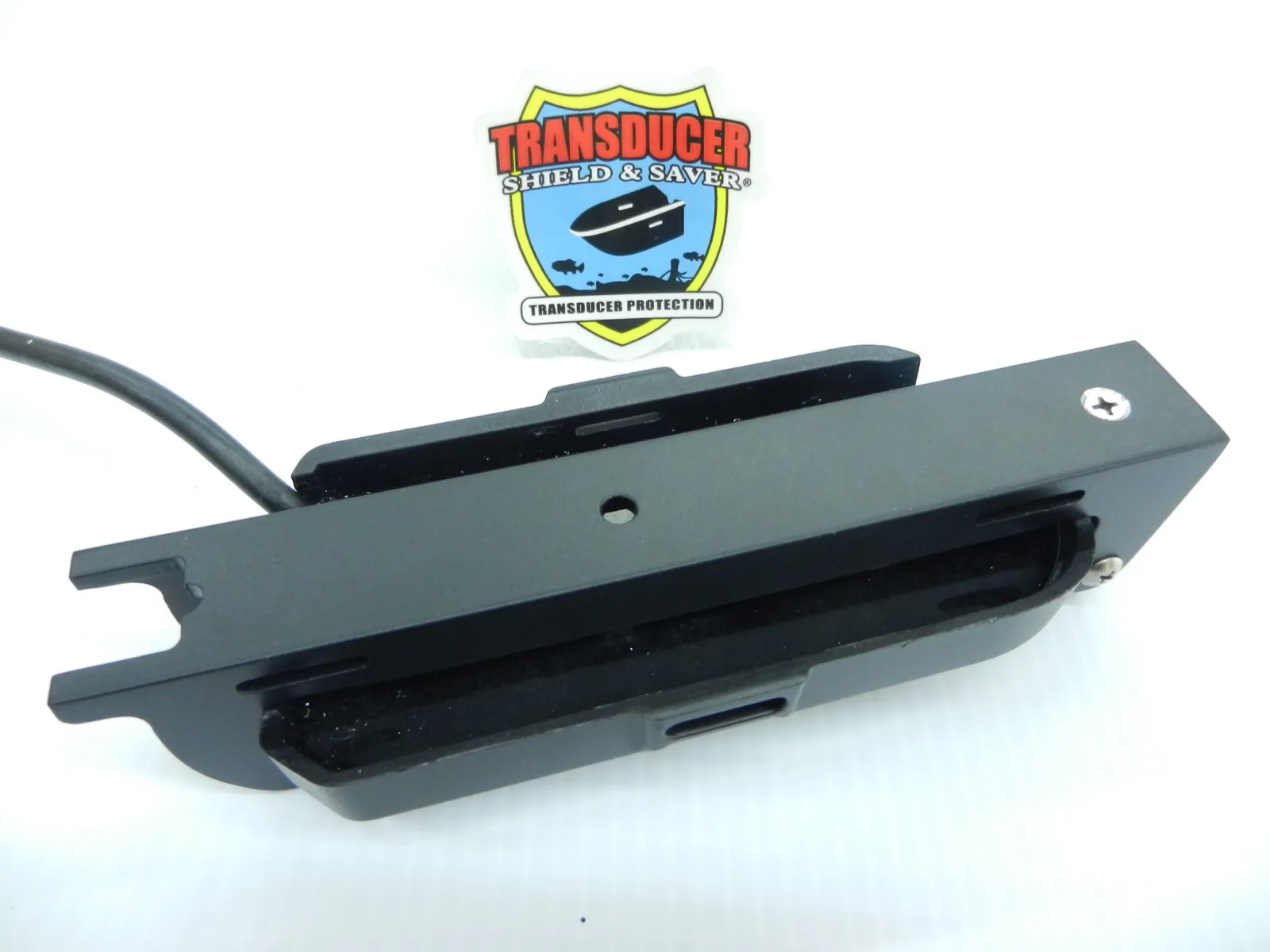

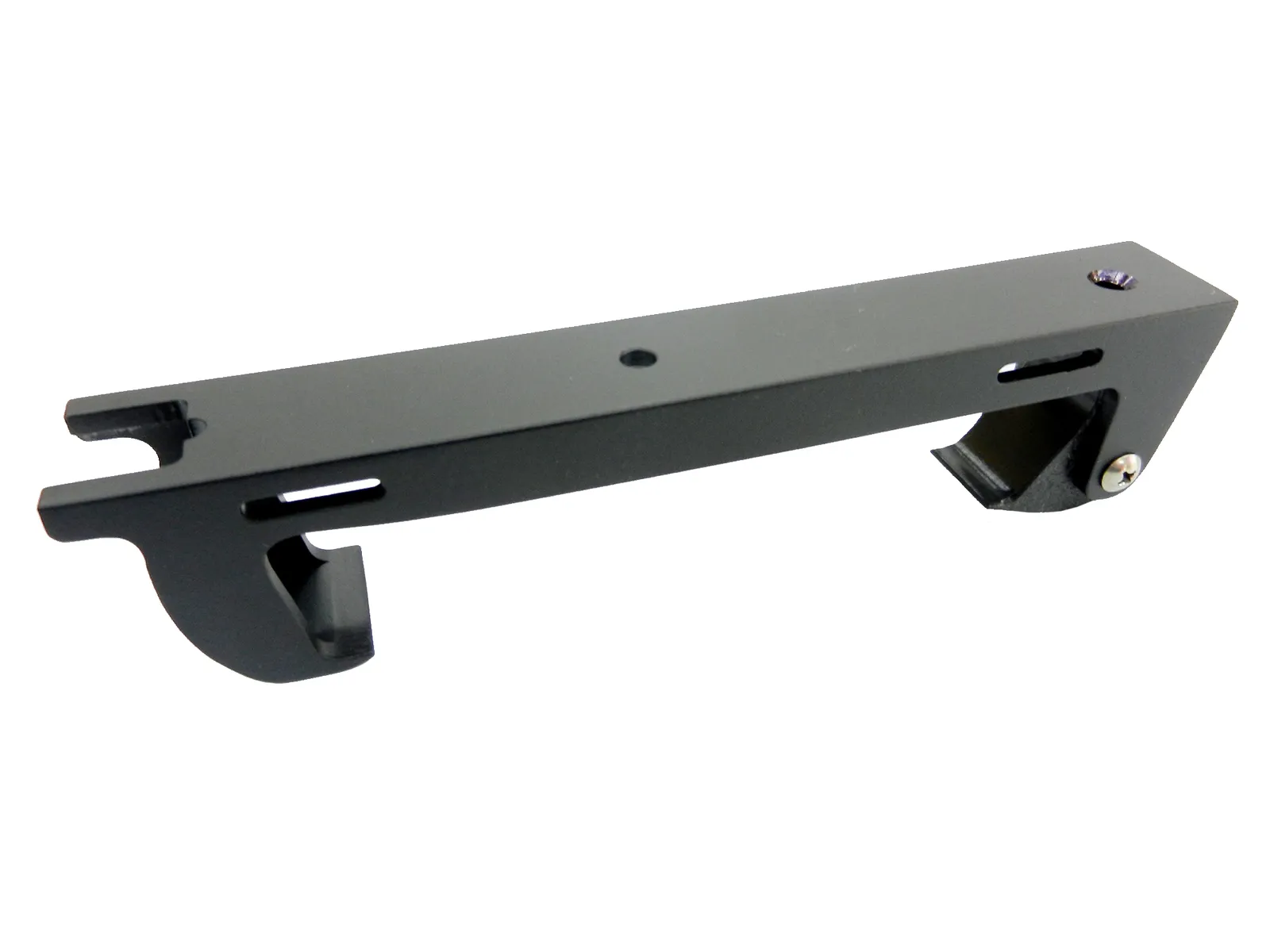

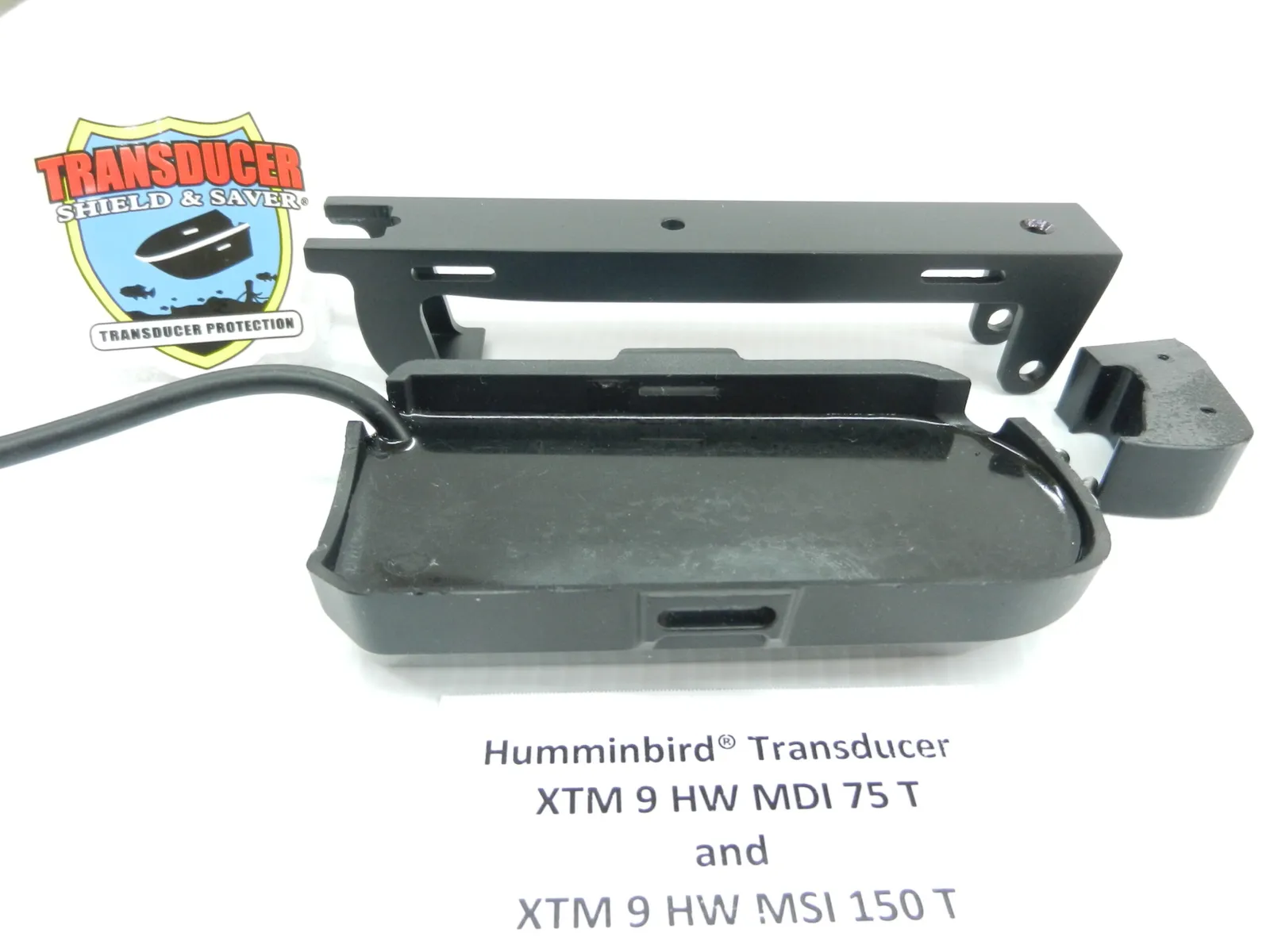

Item # TM-XTM-75/150 T is built in High Quality Alloy and Black Powder Coated.  It is designed to fit Humminbird® Helix Mega MDI Transducer #  XTM9 HW MDI 75 T or Helix Mega Si Transducer # TXM 9 HW MSI 150 T.  The Sleek Hydrodynamic Design will cut through the water for less drag, especially on trolling motors.  It reduces collection of debris, keeps the transducer positioned correctly and will not interfere with the transducer signal.  NOTE:  When the transducer is attached to a Set Back, Hole Shot Plate or the side of a Jack Plate, it will not track the bottom when up on plane because the transducer is out of the water.  For bottom reading on plane, a transducer inside the hull will be required.

For trolling motor installation, two straps are required and are not included with the Transducer Shield.  Heavy Duty Stainless Steel, Black Powder Coated straps are available @ $5.95 each.

NOTE: The Transducer Shield is 6-7/8” long.   For MinnKota 70lb thrust and below (with prop and skeg on opposite ends) or Motorguide 12v 54 lb thrust and below, additional custom components may be required.  If you are unsure about the fit on your trolling motor, please call to place your order 334-514-7147.

Item # TM-XTM-75/150 T  along with additional accessories can easily be bolted to one of our L Brackets for installation on the side of a Jack Plate OR on a Wedges for installation under a Jack Plate if a hole shot plate is present OR on a Wedges for installation on the Set Back under the boat.  For more information please go to L Brackets and/or Wedges.

It is very important that you complete the questionnaire when ordering this item.  The information you provide will help us to assist you better and avoid a delay in shipping your order.

Proudly Designed and Built in the USA

See More Fish ………. Catch More Fish
