L Adaptor Bracket to attach a Transducer Shield on the side of a 10″ & 12″ Slide Master Jack Plate. It is VERY IMPORTANT that you complete the questionnaire below in full when ordering this item.

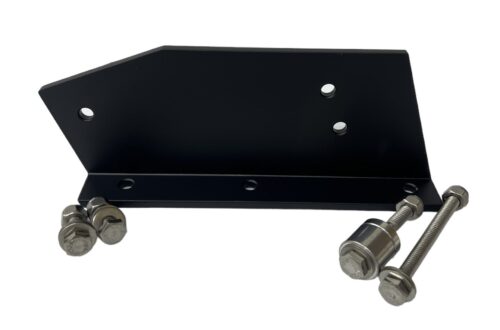

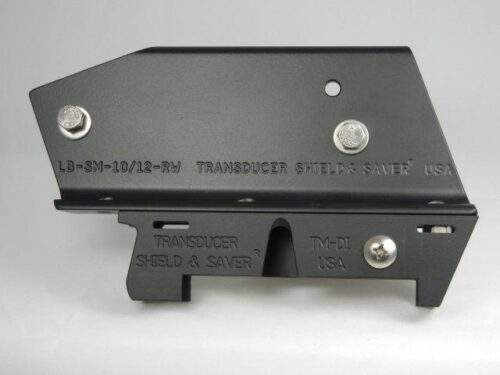

LB-SM-10/12-RW L Adaptor Bracket is built in High Quality Aluminum Alloy, Black Powder Coated and includes stainless steel hardware. It is designed to fit a Slide Master 10″ or 12″ Jack Plate.
A transducer cannot be attached to any of our L Brackets without a Transducer Shield®. Please add one of our Transducer Shields® to your shopping cart when ordering your L Bracket. Go to Shields and pick the appropriate name brand and item to suit your transducer.
(A) on Skeeter ZX model boats, the hull turning chines interfere with the side viewing signal. To help this problem it is necessary to add an extension between the L Bracket and Transducer Shield: and
(B) on Skeeter FX model boats, add a 1.5 extension when your transducer is a Lowrance® LSS1, LSS2, Total Scan, 2-in-1, 3-in-1 or 3D; Garmin TG-DS-8.4, TG-DS-9, TG-HG-8.5, Humminbird TM-HX-3, TM-H8.3, TM-H7.1 or Raymarine® Real Vision 3D transducer; and
(C) on Bass Cat Boats, if the Jack Plate was installed by Bass Cat, it is necessary to add a1.5″ extension between the L Bracket and Transducer Shield.
Add an Extension to your order if (A) or (B) or (C) pertains to your application. Contact us if you have questions. We will be happy to assist you.
It is VERY IMPORTANT that you complete the questionnaire in full when ordering this item. The information you provide will help us to assist you better and avoid a delay in shipping your order.
All Products are Proudly Designed and Built in the USA
See More Fish ………. Catch More Fish
