LWG-3 wedge along with a Transducer Shield will put the transducer at the correct angle when the boat is in the water, when installed on a boat set back/step or Hole Shot Plate under a Jack Plate.

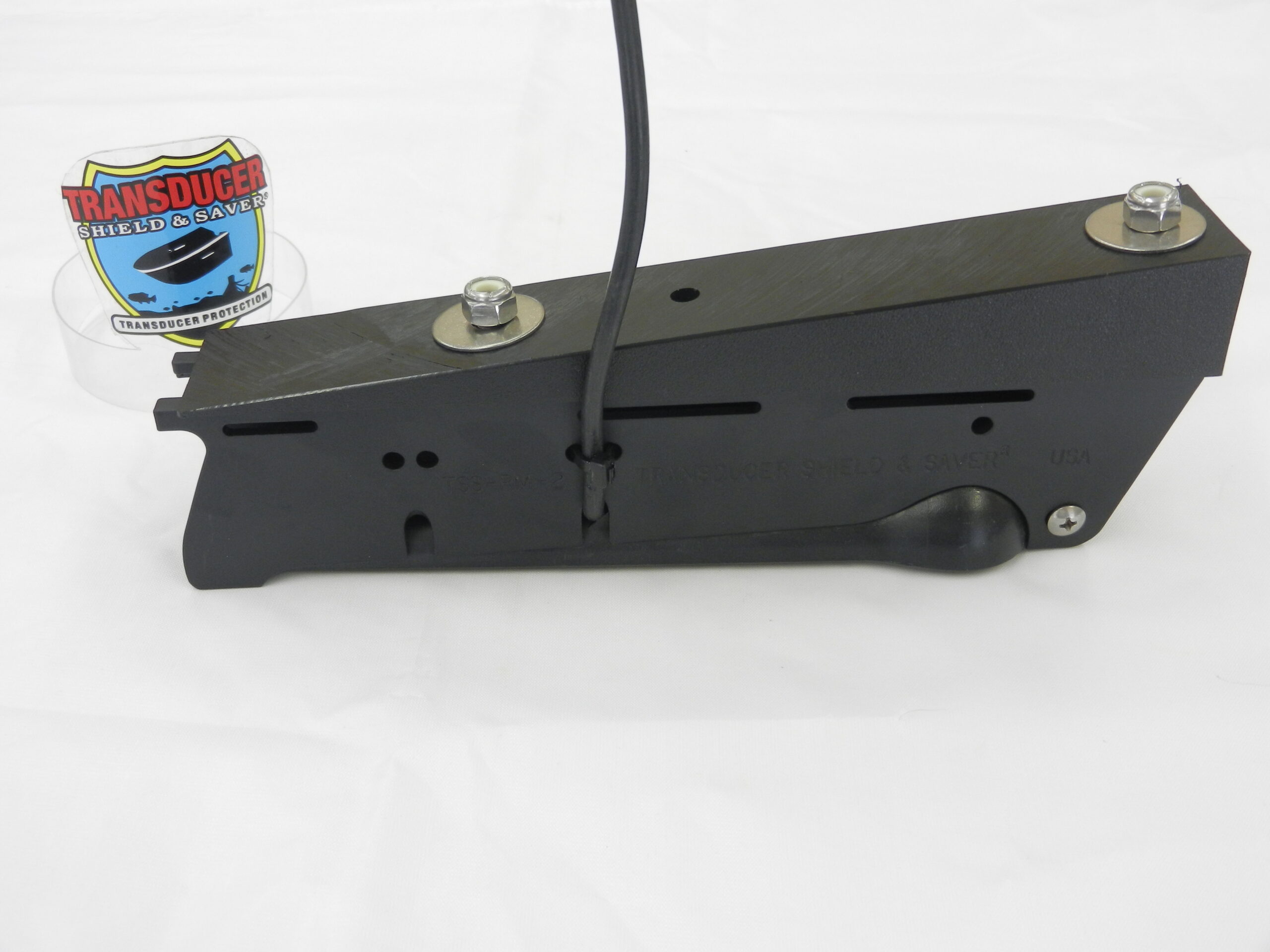

Item # LWG-3 wedge is built in black polyethylene marine grade plastic. The wedge is designed to put the transducer at the correct angle when the boat is in the water. A transducer CANNOT be attached to a wedge without a Transducer Shield®. When purchasing this item, please remember to choose the appropriate Transducer Shield® to fit your transducer.
Choose LWG-3 wedge for the following Transducer Shields: Garmin: TG-DS-Vu or TG-DS-8.4 and Humminbird: TM-ONIX-1, TM-ONIX-2 or TM-HX-1 and Raymarine: TSS-RM-1 or TSS-RM-2
A Transducer Shield® and Wedge assembled together will enable you to attach a transducer to a hull set back/step OR hole shot plate/baffle plate under a jack plate. This wedge is NOT suitable for hole shot plates that are at a 90º angle with the transom. For such jack plates, we recommend WG-2.5 Wedge or use an L Bracket to attach the Transducer Shield to the side of the jack plate.
It is very important that you complete the questionnaire when ordering this item. The information you provide will help us to assist you better and avoid a delay in shipping your order.
Proudly Designed and Built in the USA
