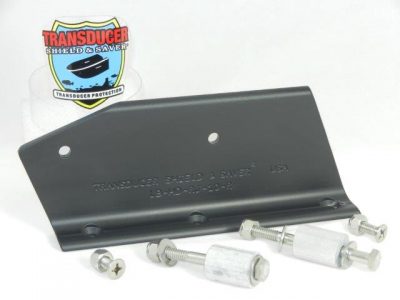

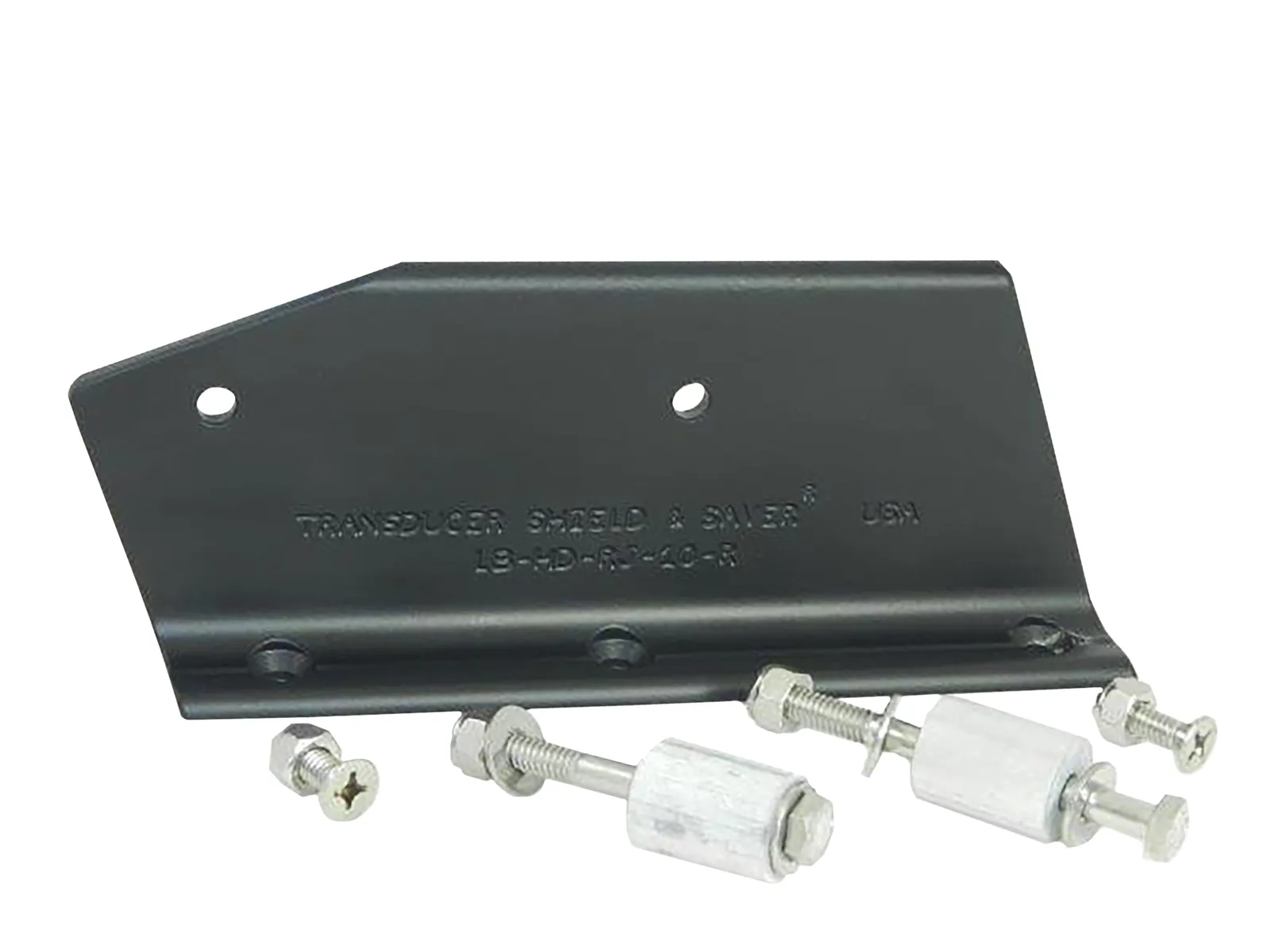

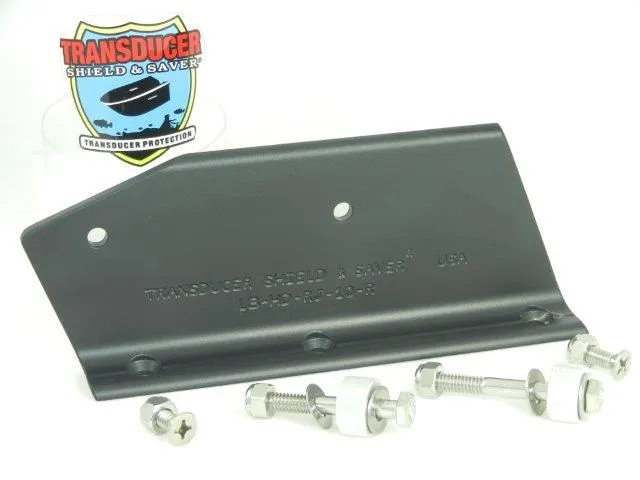

Item # LB-HD-RJ-10-R L Adaptor Bracket is built in High Quality Aluminum Alloy, Black Powder Coated and includes stainless steel hardware. It is designed to fit Hydrodynamics Rapid Jack jack plates.
A transducer cannot be attached to an L Bracket without a Transducer Shield.
Please add one of the following Transducer Shields® to your shopping cart when ordering your L Bracket:
(1) Item # TM-Csi for Humminbird® compact side image transducer # XNT 9 SI 180 T
(2) Item # TM-Di for Humminbird® down image transducer # XNT 9 DI T
(3) Item # TM-HDsi for Humminbird® side image transducer # XHS HDSI 9 180T
(4) Item # TM-ONIX-1 for Humminbird side image transducer # XT 14 20 HDSI T
(1) Item # TS-Dsi for Lowrance® down scan transducer # 000-10260-001
(2) Item # TS-LSS-1 for Lowrance® LSS1 (6″) structure scan transducer
(3) Item # TS-LSS2-L for Lowrance® LSS2 (10-1/4″) structure scan transducer
(4) Item # TS-HDI-2 for Lowrance® hybrid dual image transducer # 000-10976-001 (83/200kHz)
(5) Item # TS-LSS-3D for Lowrance® LSS1 and Pod transducers together
(6) Item # TS-LSS2-3D for Lowrance® LSS2 and Pod transducers together
On Skeeter ZX model boats, the hull turning chines interfere with the side viewing signal. To help correct this problem it is necessary to add an extension between the L Bracket and Transducer Shield®
Please complete the questionnaire when placing your order. The more information that we have about your boat and jack plate, the better we can assist you. Contact us if you need further information.
|Dimensions||7 x 3 x 3 in|

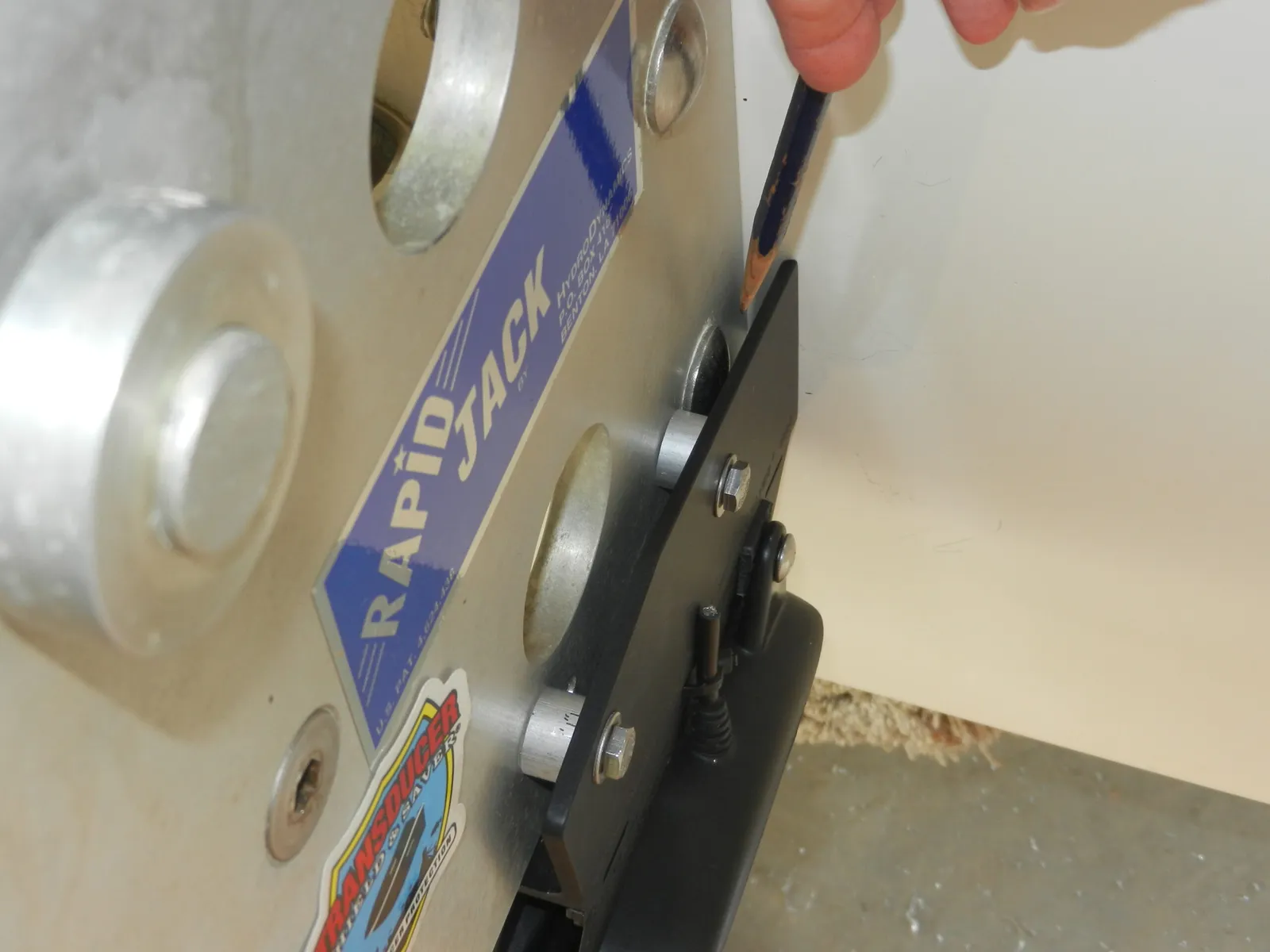

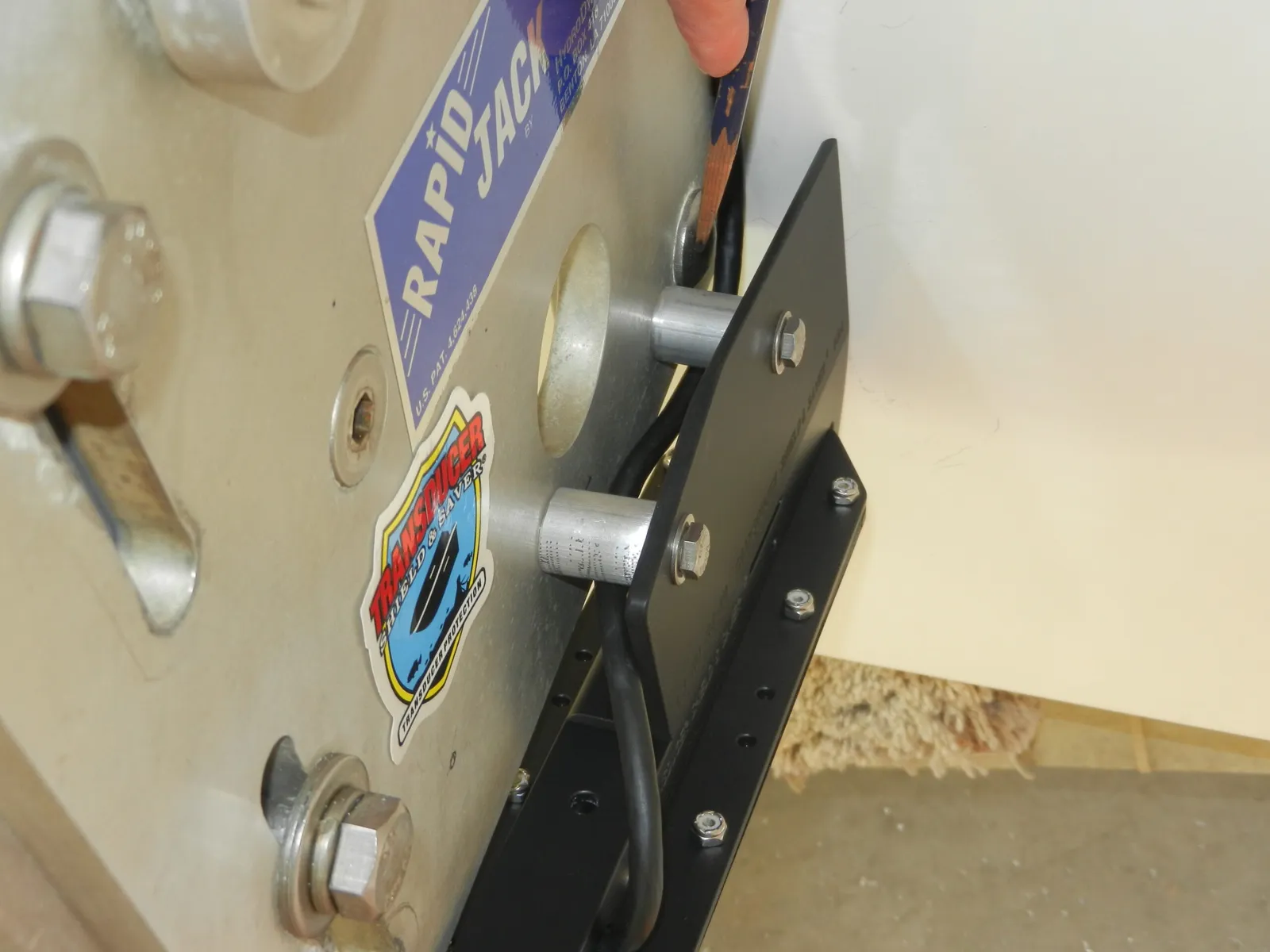

L. Adapter Bracket to fit Hydro Dynamics Rapid Jack jack plate. Used with a Transducer Shield to attach transducer to the side of the Jack Plate.
