AP-HX-1 to fit Humminbird Mega SI or Solix SI Transducer on a Transom

$89.95

For transom installation to protect your transducer from side to side and front to back impact.  Ideal for boats with flat transoms and for boats without a jack plate. Recommended as an added accessory to our SBB-4 Spring Back Bracket.  This particular Armor Plate is available in a 90° bend.  If you are planning to install the Armor Plate on a 90° surface, please let us know in the “check out order” note box.

  • Price: $0.00 Quantity:
Categories: ,

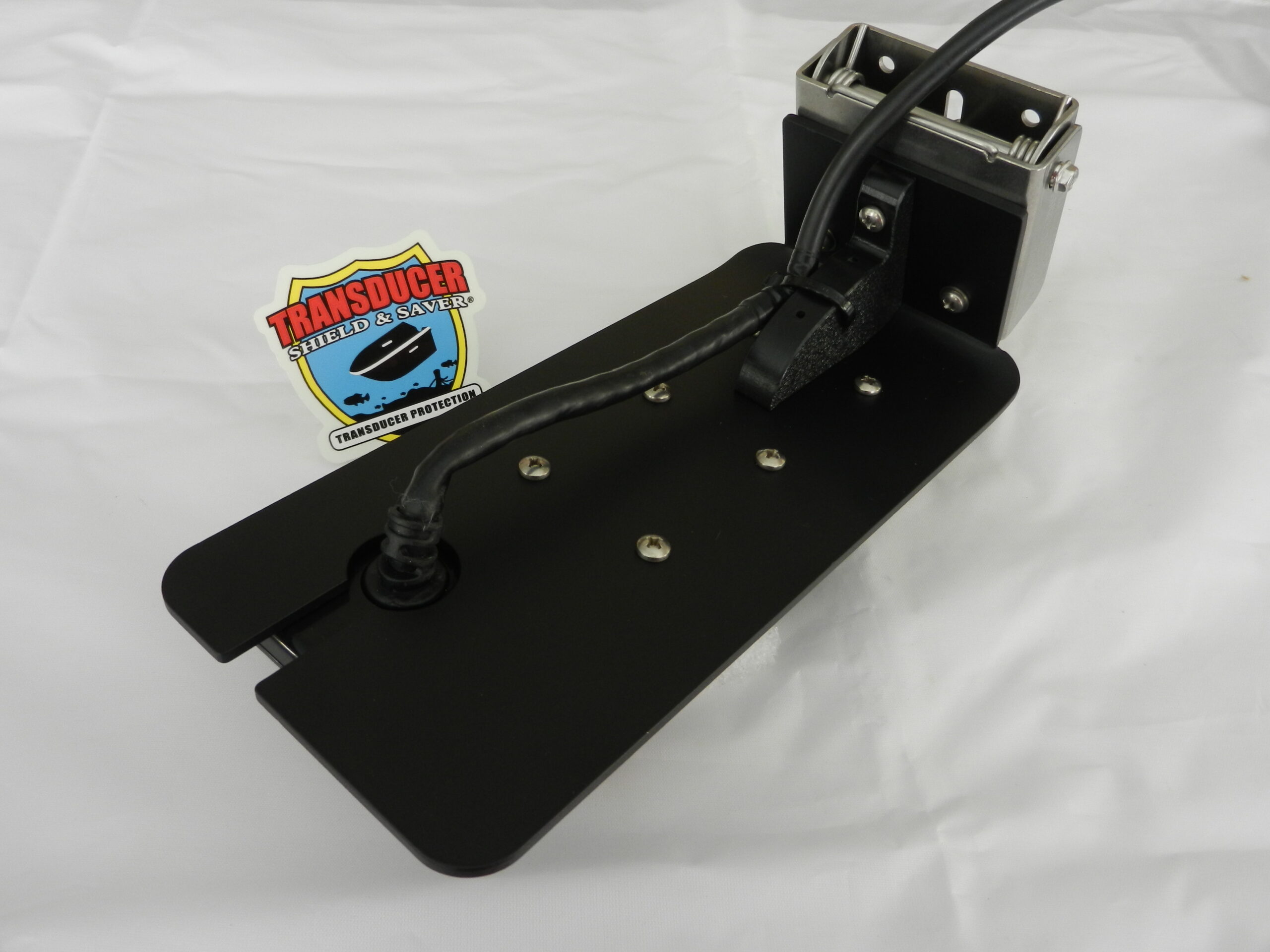

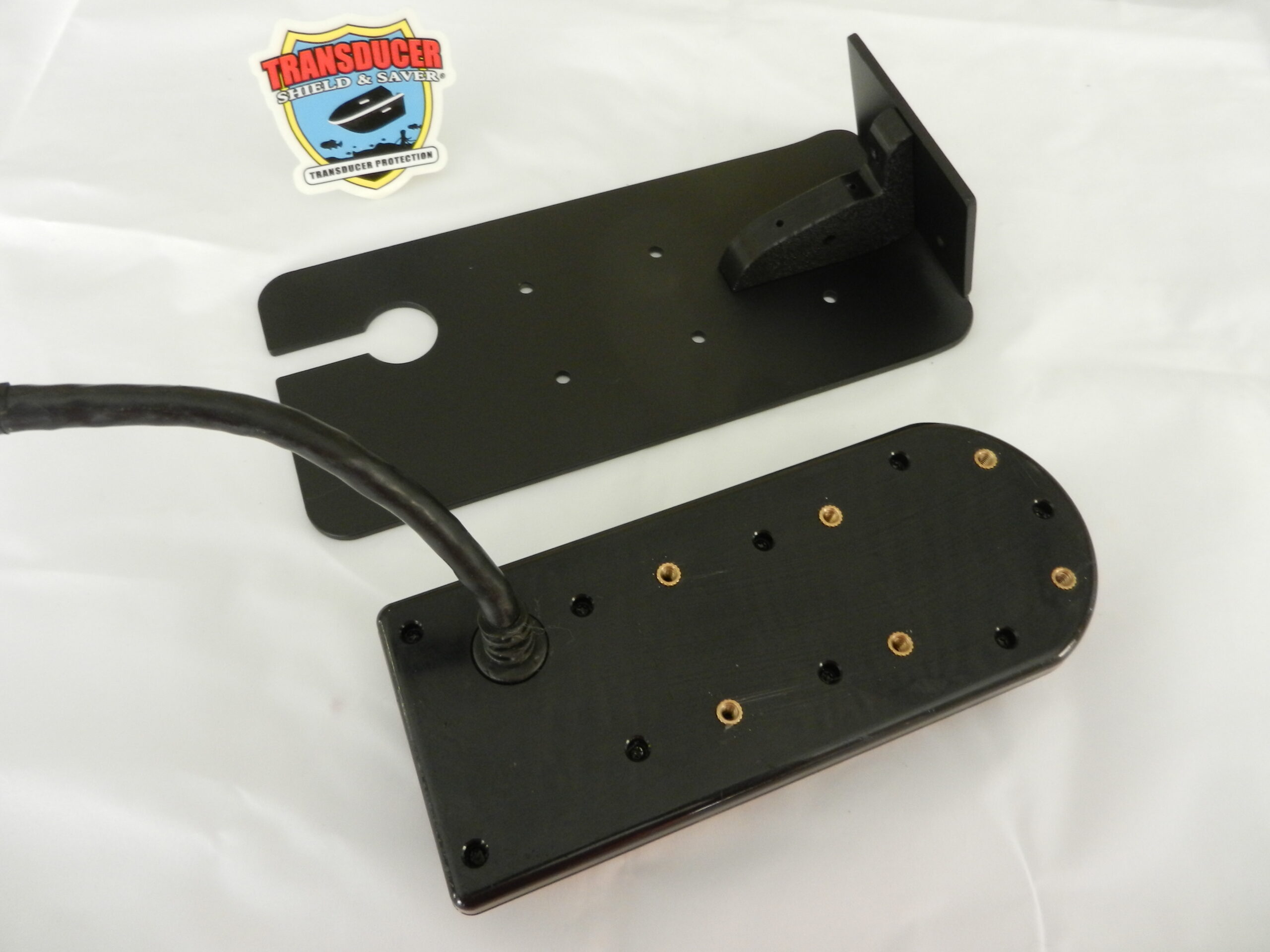

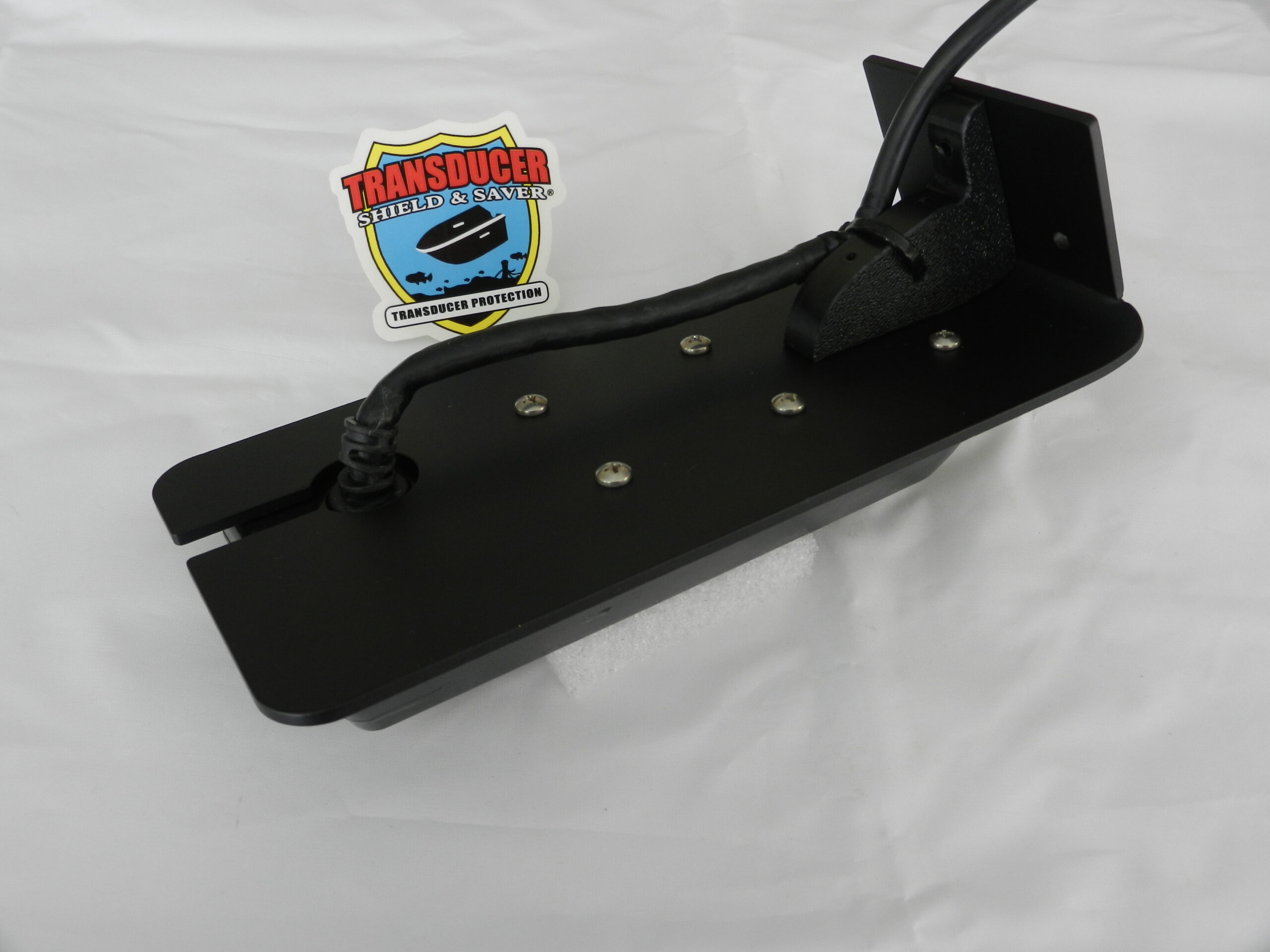

Item # AP-HX-1 is built in High Quality Aluminum Alloy and Black Powder Coated for installation on the boat transom.  This product is designed to fit Humminbird® MEGA SI transducer # XM 9 20 MSI T or SOLIX SI transducer # XM 14 20 MSI T (transducer dimensions 7-1/4 L x 3” W).  This item includes stainless steel hardware and easy Do-It Yourself instructions.  To ensure that you are ordering the correct Armor Plate, please enlarge the images for transducer recognition or click here to identify your transducer Humminbird Mega & Solix transducer

An Armor Plate is designed to protect the transducer from side to side as well as front and back impact. An Armor Plate takes the place of the factory transom mounting bracket.  If the Armor Plate is installed anywhere other than on the transom, for example on the set back well, some shimming may be required if the angle needs to be adjusted.  This particular Armor Plate is available in a 90° bend.  If you are planning on installing the Armor Plate on a 90° surface, please let us know in the “check out order” note box.

An Armor Plate is also designed to attach to our Spring Back Bracket # SBB-4 for all around transducer protection.  When purchasing this Armor Plate with a Spring Back Bracket an additional spring (Spring-2) is recommended due to the size and weight of the transducer.  If an Armor Plate breaks, which has been attached to the boat without a Spring Back Bracket, it has no warranty whatsoever.

WARNING:  We do not recommend the Spring Back Bracket and Armor Plate on the set back wall.  It could reduce the flow of water to the engine.

It is very important that you complete the questionnaire in full when ordering any of our products.  The information you provide will help us to assist you better and avoid a delay in shipping your order.

All of the Products are Proudly Designed and Built in the USA
See More Fish …… Catch More Fish
