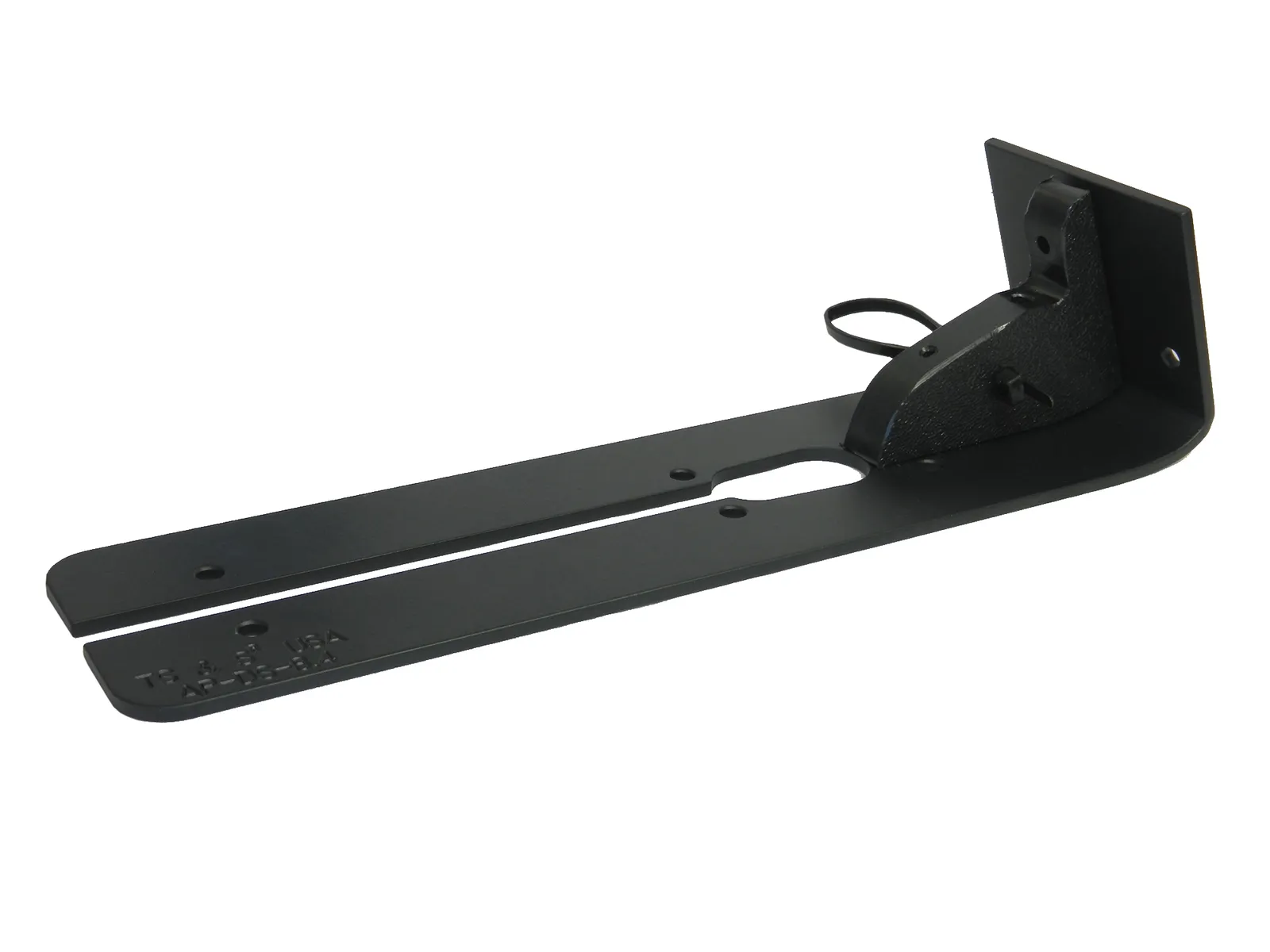

AP-DS-8.4 to fit Garmin DownVü/SideVü (with Chirp) Transducer GT40 on a Transom

$64.95

For transom installation to protect your transducer from side to side and front to back impact.  Ideal for boats with flat transoms and without a jack plate.  Recommended as an added accessory to our SBB-4 Spring Back Bracket.   It is very important that you complete the questionnaire when ordering this item.  The information you provide will help us to assist you better and avoid a delay in shipping your order.

  • Price: $0.00 Quantity:
SKU: AP-DS-8.4 Categories: ,

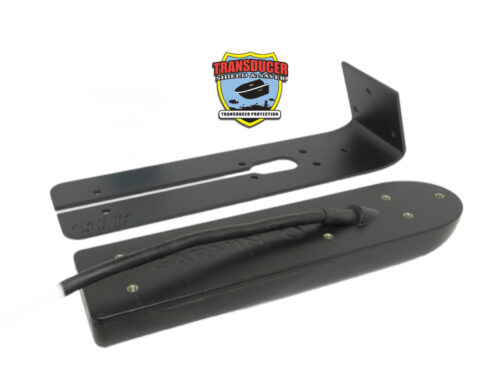

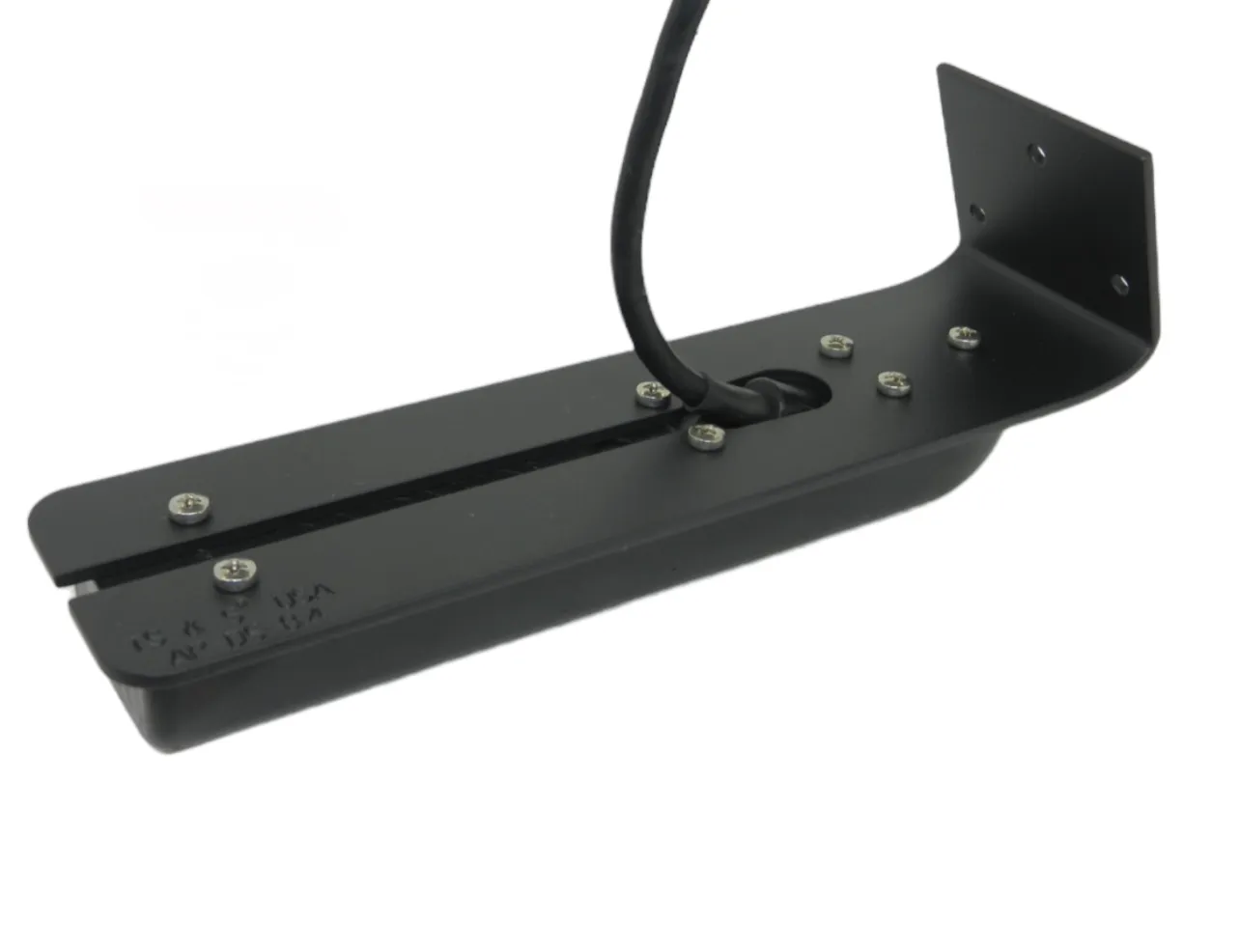

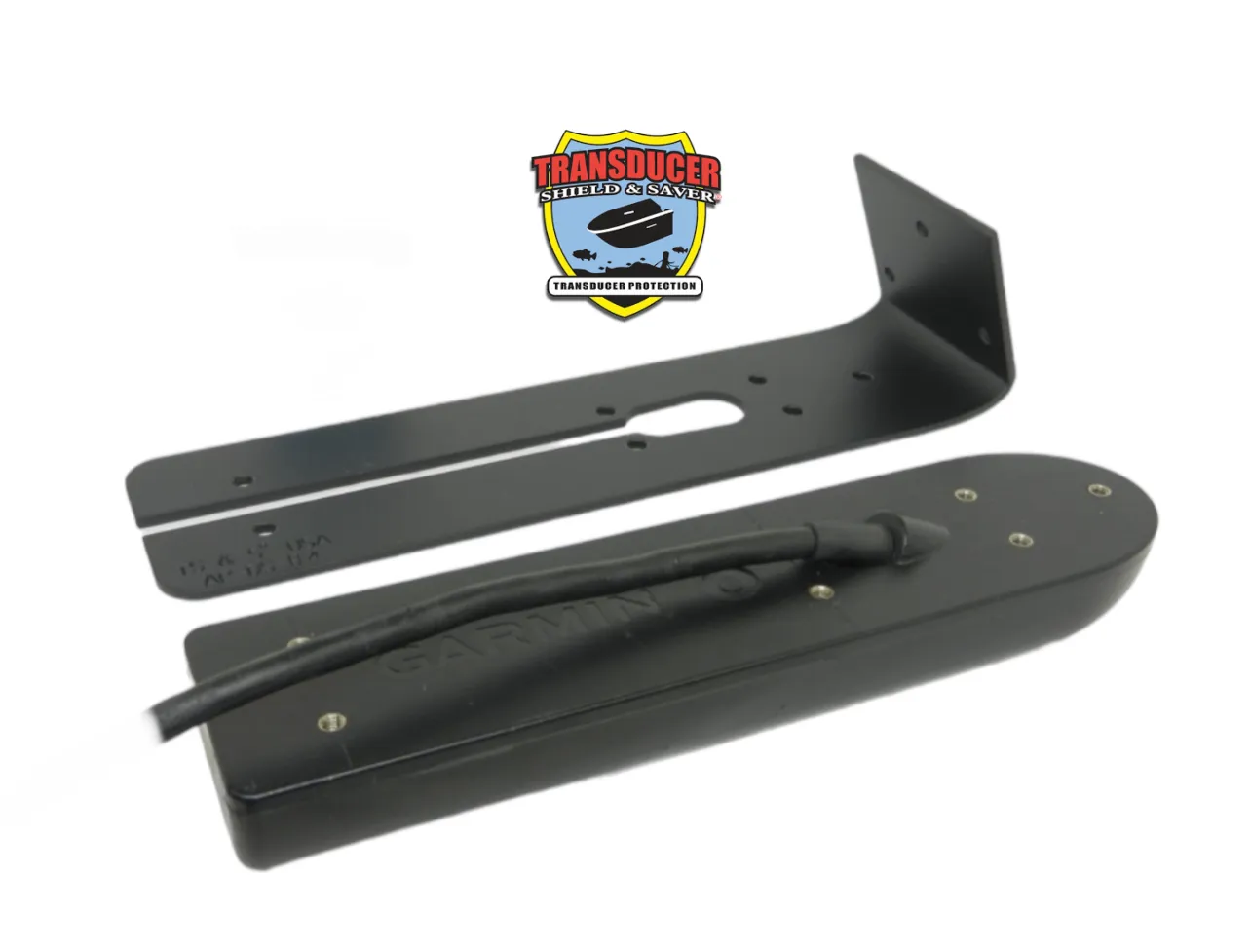

Item # AP-DS-8.4 is built in High Quality Aluminum Alloy and Black Powder Coated for installation on the boat transom.  This product is designed to fit Garmin® DownVü/SideVü (with Chirp) transom mount transducer number 010-12220-00 model GT40.  Transducer dimensions: 8.4 x 2.0 x 1.0 in (212 x 52 x 26 mm).  This item includes stainless steel hardware and easy Do-It Yourself instructions. To ensure that you are ordering the correct Armor Plate, please enlarge the images for transducer recognition.

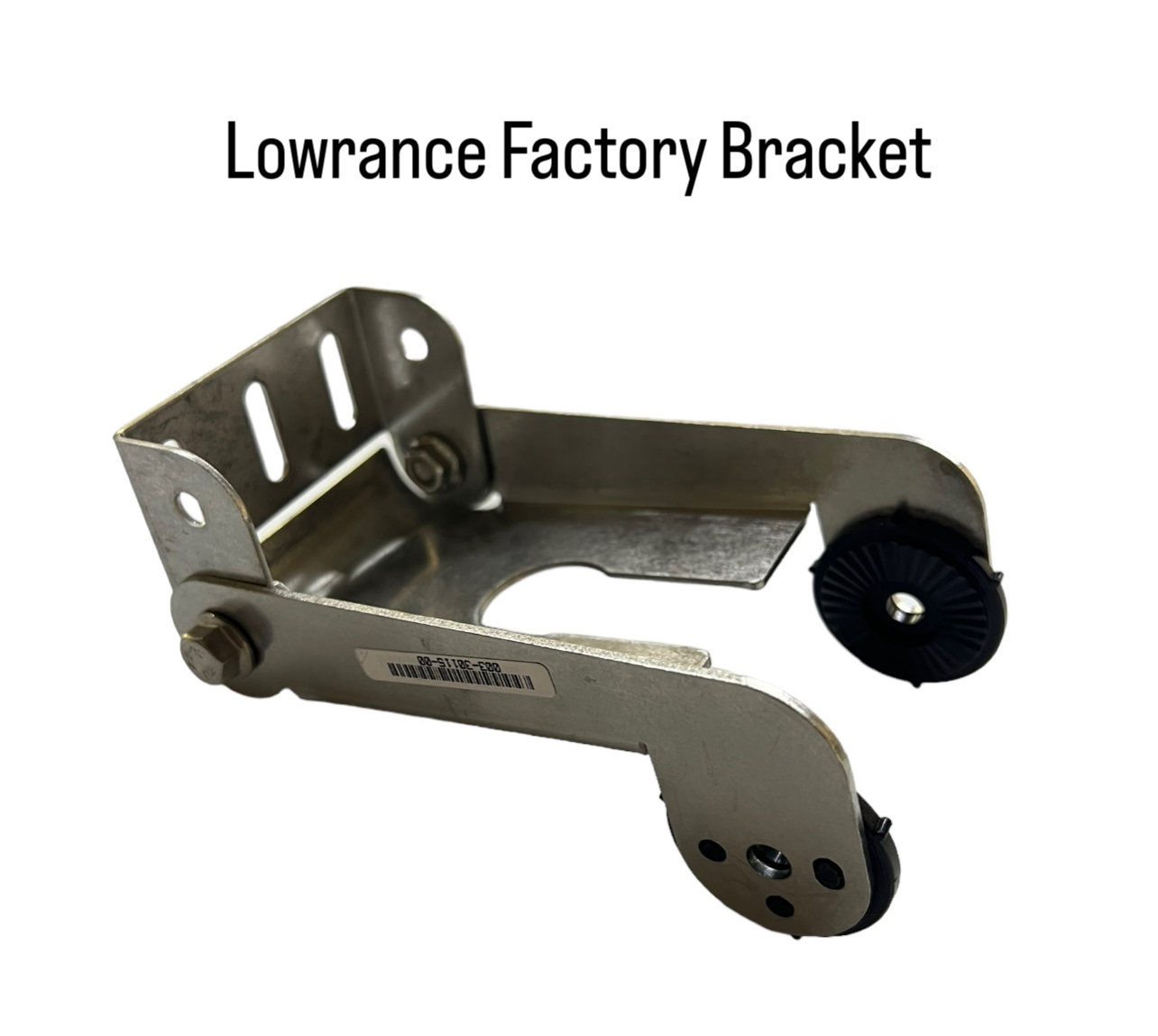

An Armor Plate is designed to protect the transducer from side to side as well as front and back impact. An Armor Plate takes the place of the factory transom mounting bracket.  If the Armor Plate is installed anywhere other than on the transom, for example on the set back wall, some shimming may be required if the angle needs to be adjusted.

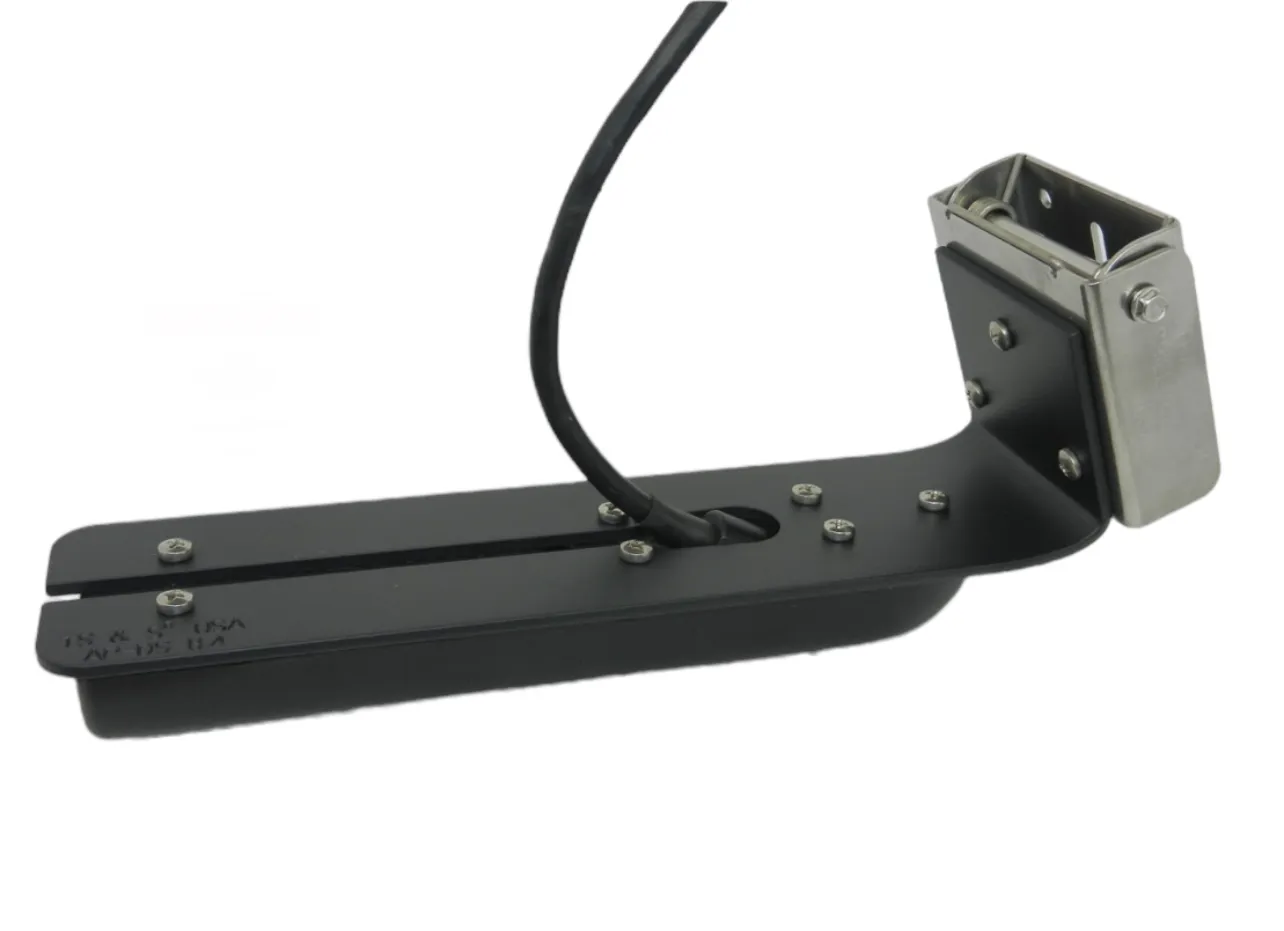

An Armor Plate is also designed to attach to our Spring Back Bracket # SBB-4 for all around transducer protection.  When purchasing this Armor Plate with a Spring Back Bracket an additional spring (Spring-2) is recommended due to the size and weight of the transducer.  If an Armor Plate breaks, which has been attached to the boat without a Spring Back Bracket, it has no warranty whatsoever.

It is very important that you complete the questionnaire when ordering this item.  The information you provide will help to assist you better and avoid a delay in shipping your order.

Proudly Designed and Built in the USA

See More Fish  ……….  Catch More Fish
