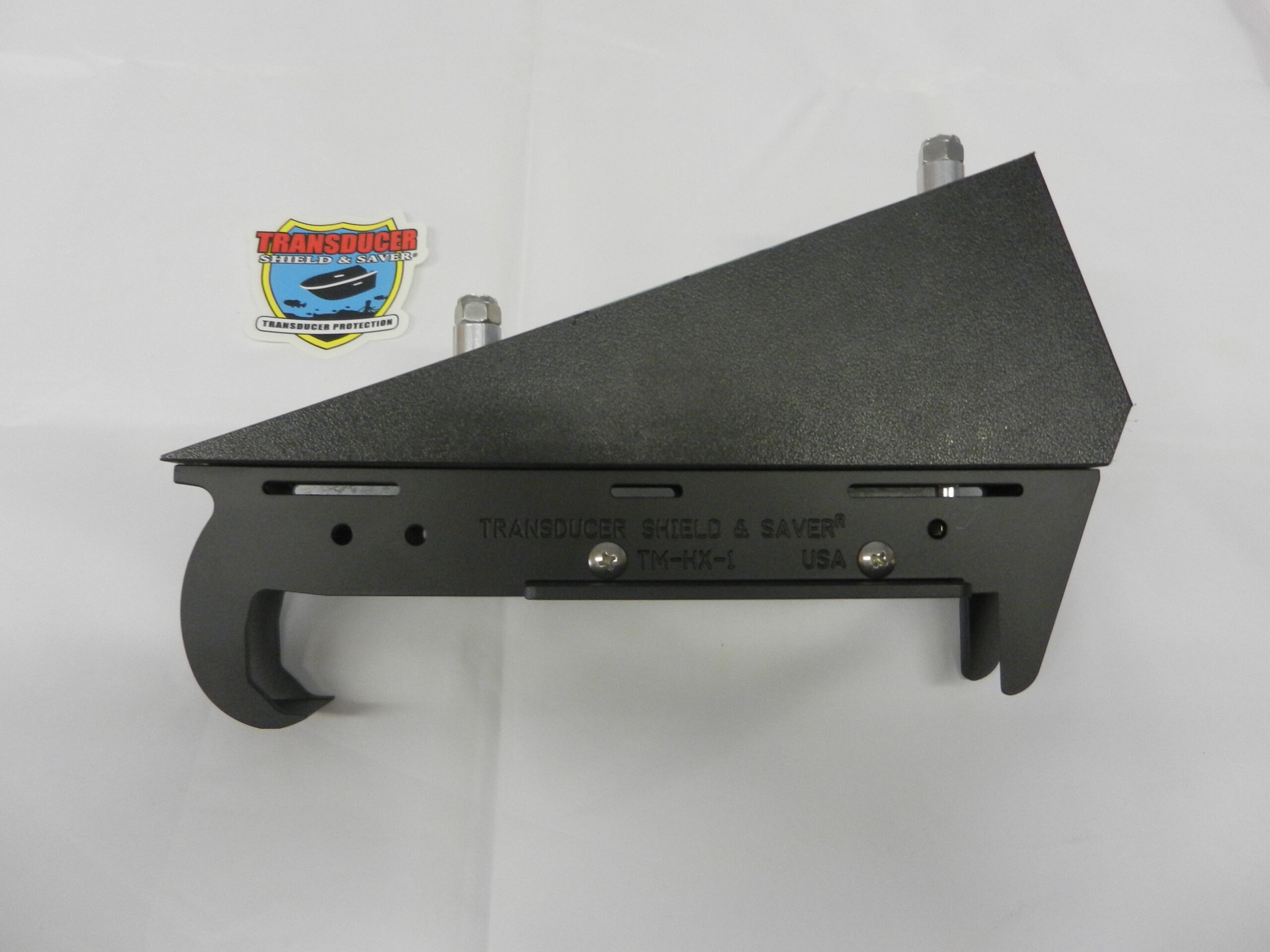

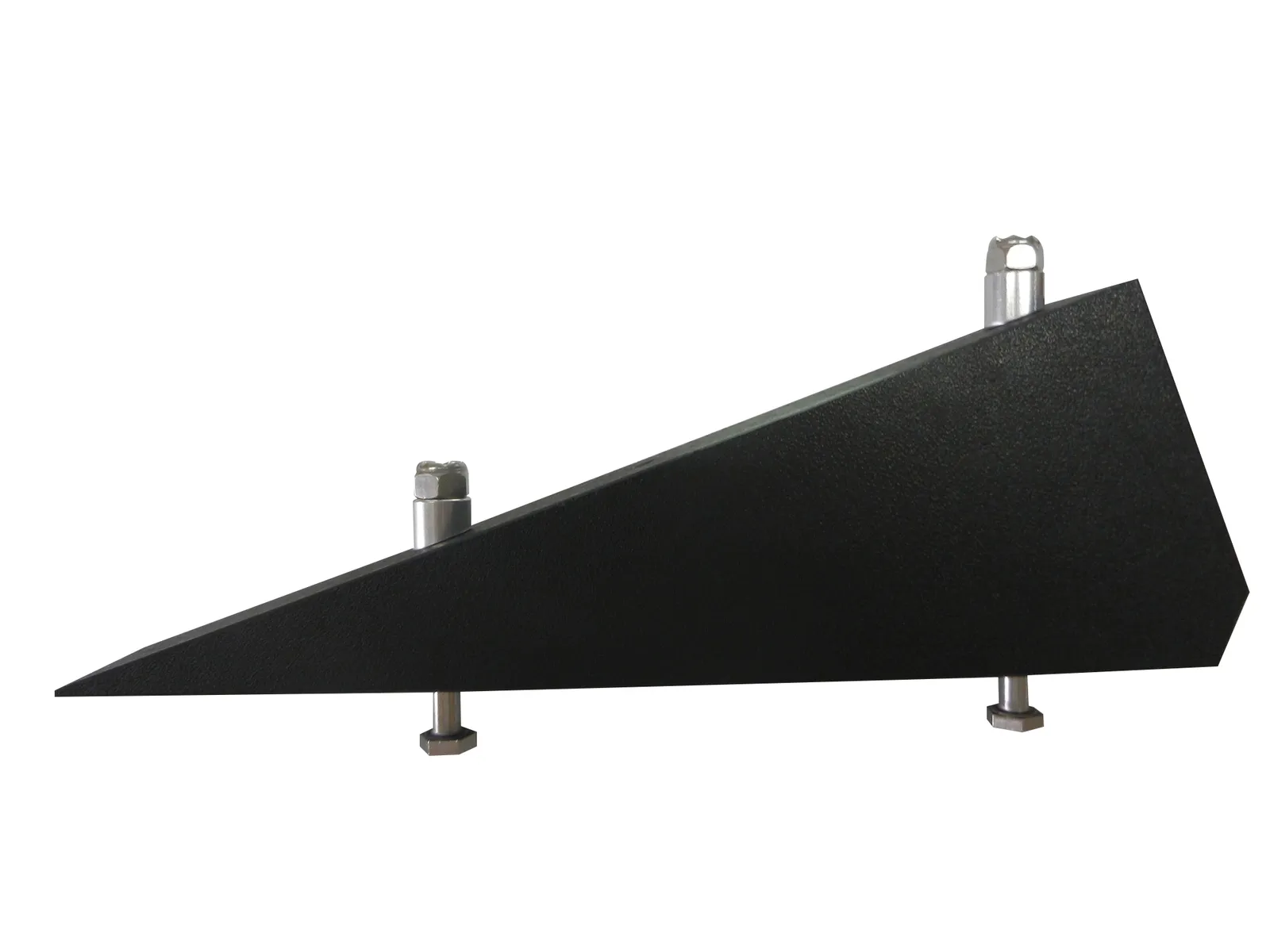

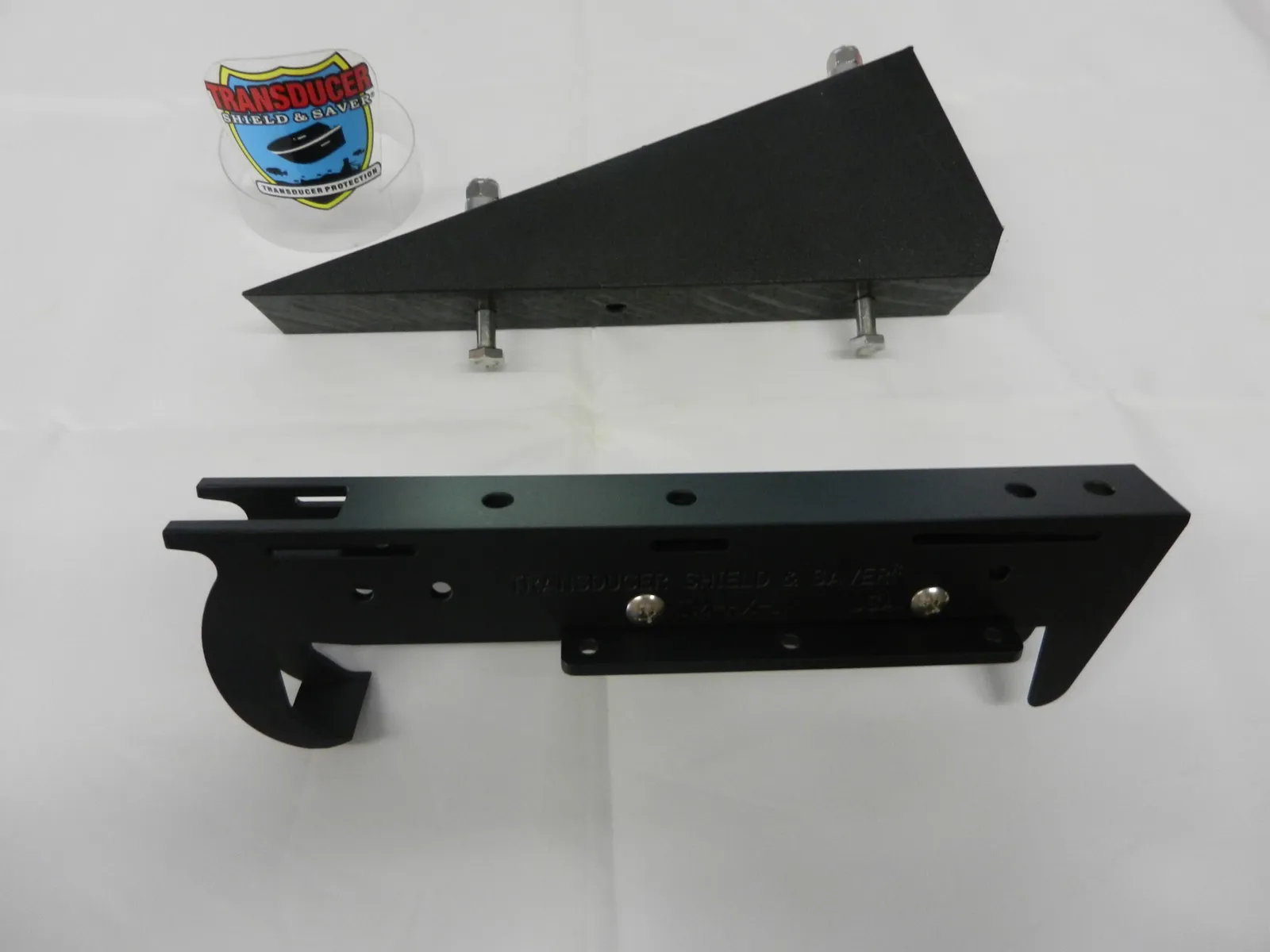

WG-3.5 Wedge used to attach TM-HX-1 Transducer Shield to a 90 degree Hole Shot Plate

WG-3.5 Wedge

ITEM # WG-3.5  wedge is built in black polyethylene marine grade plastic.  The wedge has been designed to put the transducer at the correct angle when the boat is in the water.  Use this wedge to install your Humminbird® Mega or Solix transducer on 90 Degree Jack Plates that have a hole shot plate under the jack plate (example:  Atlas and some other T-H Marine Jack Plates).
Note:
A transducer cannot be attached to the wedge without a Transducer Shield.and we do NOT recommend this application on a Jack Plate smaller than 10″.

Choose WG-3.5 wedge for the following Transducer Shield TM-HX-1 which fits Humminbird® Mega Transducer # XM 9 20 MSI T or Solix Transducer # XM 14 20 MSI T

It is very important that you complete the questionnaire when ordering this item. The information you provide will help us to assist you better and avoid a delay in shipping your order.

Proudly Designed and Built in the USA

See More Fish    ……    Catch More Fish

$48.95

WG-2.5 Wedge to attach Transducer Shield to 90 degree hole shot plate.

Used along with a Transducer Shield on 90 Degree Jack Plate with Hole Shot Plate. This wedge is  suitable for our Humminbird® Transducer Shield # TM-HX-1
